FR-2054T
8-Channel Digital Output and 8-Channel Digital Input Module





Model: FR-2054T

  • Built-in Wire-saving FRnet DI/DO control
  • High-speed transmission reliability
  • Simple synchronization mechanism
  • No software overhead on protocol processing
  • Supporting broadcasting (1:n data transmission)
  • Duplicating output easily
  • Fixed I/O scan-time and I/O synchronization
  • DIN-Rail

The FR-2054T has 8-channel isolated Sink/Source input and 8-channel isolated sink output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-200 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2054T; refer to literature related to I-7188EF, I-8172/I-8172W, FRB-100/200/200U.

Digital Output
Output Channel 8
Output Type Sink, Open-Collector (NPN)
Load Voltage 30 VDC, Max.
Load Current 100mA, Max
Isolation Voltage 3750 Vrms
Digital Input
Input Channel 8 (Sink/Source)
Input Type Isolation, One Common for All Digital Inputs
On Voltage Level +19 VDC ~ 30 VDC
Off Voltage Level +11 VDC max
Input Impedance 3.3 kOhm
Isolation Voltage 3750 Vrms
Interface
2-wire cabling 2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may change
Transfer distance Max. 400m for speed 250Kbps
Max. 100m for speed 1Mbps(Default)
LED Indicators Power, Communication Run, Communication Error, Terminal resistor, Digital input/output
Transfer speed 250Kbps and 1Mbps(Default)

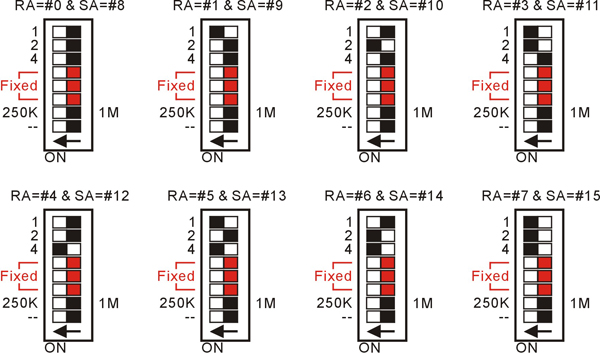

DIP Switch Settings
Cyclic scan time 2.88ms for speed 250Kbps
0.72ms for speed 1Mbps(Default)
Connection Removable 20-pin Terminal Block
Power
Input Voltage Range +10 ~ +30 VDC (Non-isolation)
Power Consumption 2W Max
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 5-Pin Removable Terminal Block
Mechanical
Casing Plastic (Flammability UL 94V-0)
Dimensions 33 mm x 102 mm x 110 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +85 °C
Ambient Relative Humidity 10% ~ 90% RH, non-condensing

FR-2054T 8-channel isolated digital output and 8-channel isolated digital input module

GPSU06U-6 24 V/0.25 A Power Supply, (No-mounting)
DIN-KA52F 24 V/1 A Power Supply, (With DIN-Rail mounting)
