FR-2024iT
4-channel Isolated Analog Output Module With Isolated Communication Line

~ NEW ~
Model: FR-2024iT

  • Built-in wire-saving FRnet control
  • High-speed transmission reliability
  • Simple synchronization mechanism
  • No software overhead on protocol processing
  • Supporting broadcasting (1:n data transmission)
  • Duplicating output easily
  • Fixed I/O scan-time and I/O synchronization
  • DIN-Rail mountable

The FR-2024iT is a 12-bit, 4-ch analog outputs module that provides programmable output range (0 ~ + 10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20mA, +4mA ~ +20mA) . There are options for power on value and Safe Value for your consideration.

The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2017iT/2024iT; refer to literatures related to I-7188EF, I-8172W, and FRB-100/200/200U.

Analog Output
Output Channels 4
Output Type 0~20mA, 4~20mA, 0~5V, +/-5V, 0~10V, +/-10V
Resolution 12-bit
Accuracy +/- 0.1% of FSR
Zero Drift Voltage: +/-30μV/ °C
Current: +/-0.2μA/ °C
Span Drift +/- 20ppm/°C
DA Output Response Time 10ms per channel
Programmable Output Slope 0.125 to 2048 mA/second
0.0625 to 1024 V/second
Voltage Output Capability 10 V@20 mA
Current Load Resistance External +24V : 1050 Ohms
Power-Up and Safe Value Yes
Interface
Isolation Voltage 2500 VDC
2-wire Cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may be changed
Transfer Distance Max. 400m for speed 250K
Max. 100m for speed 1M (Default)
LED Indicators Power, Communication Run, Communication Error, Terminal resistor, Digital output
Transfer Speed 250Kbps and 1Mbps (Default)

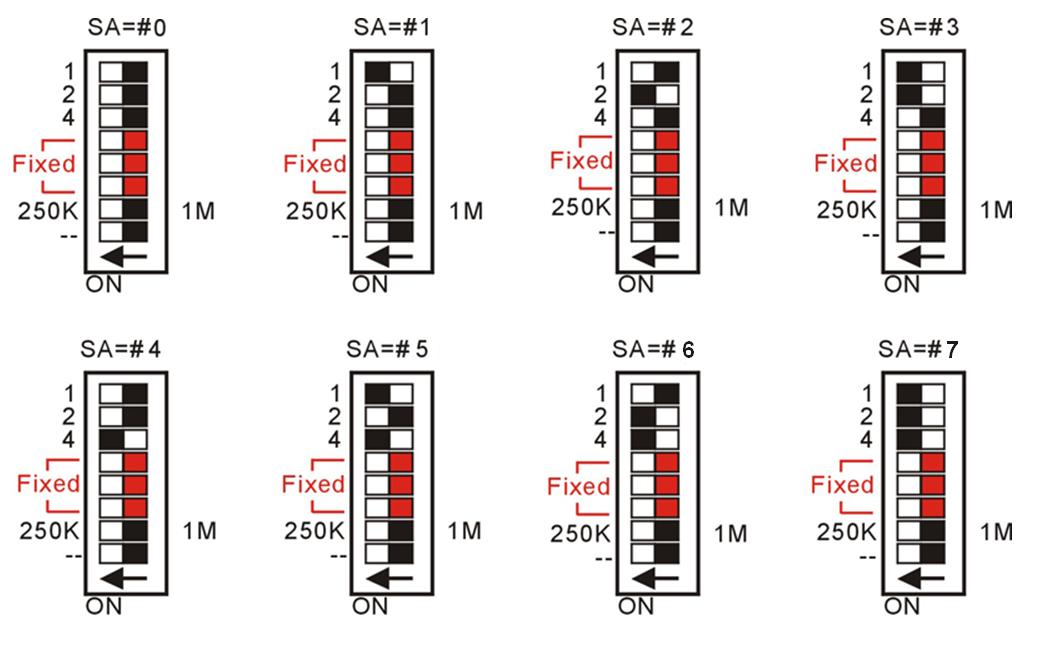

DIP Switch Selectable
Cyclic Scan Time 2.88 ms for speed 250K
0.72 ms for speed 1M (Default)
Power
Input Voltage Range +10 ~ +30 VDC (Non-isolation)
Power Consumption 2.88 W Max
Connector 5-Pin Removable Terminal Block
EMS Protection
ESD (IEC 61000-4-2) 4 kV contact for power line, communication line and each channel
8 kV air for random point
EFT (IEC 61000-4-4) 4 kV for power liner
Surge (IEC 61000-4-5) 3 kV for power liner
Case
Mechanical Plastic
Flammability UL 94V-0 materials
Dimensions (W x H x D) 32.5 x 110 x 102 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +85 °C
Humidity 10% ~ 90% non-condensing

FR-2024iT 4-channel Isolated Analog Output Module With Isolated Communication Line

CA-0904 4-pin connector & 9-pin Female D-sub cable
GPSU06U-6 24 V/0.25 A Power Supply, (No-mounting)
DIN-KA52F 24 V/1 A Power Supply, (With DIN-Rail mounting)
