DN-PI-M
Termination board for pulse input
~ NEW ~
Model: DN-PI-M
The DN-PI-M is a termination board for pulse input modules. The size of DN-PI-M is relatively small than other termination boards. Due to the small size of termination board, the DN-PI-M can be fulfilled some applications in small cabinet.
Thermocouple Input
Channel
8
General
Dimension (W x L x H)
112 x 117 x 29 mm
Mounting
35 mm DIN Rail, Wall
Operating temperature
-25 ~ +75 °C
Humidity
5 ~ 95 % RH, Non-condensing

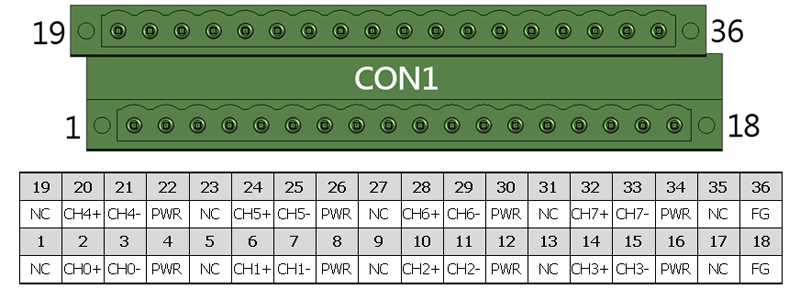

PIN Assignments
Wiring
DN-PI-M CR
Termination board for pulse input module (RoHS)
CA-3710AM
1m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3720AM
2m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3730AM
3m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3750AM
5m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
