DN-DI-32DW
Termination board for digital input with high EMS protection and removable fuses


~ NEW ~
Model: DN-DI-32DW


The DN-DI-32DW is a termination board with EMS protection. It provides sink and source connections for comprehensive applications. Moreover, the DN-DI-32DW supports wet and dry contact to fulfill most applications. In additional, this board also offers each channel one COM pin, the benefit for users is that they need no more additional terminal block for extending COM. Furthermore, the DN-DI-32DW offers removable fuse protection for the field loops with local indication of fuse failure and overvoltage and transient protection.

Digital Input
Type *Wet contact (Current sinking/sourcing)
*Dry contact (Current sinking/sourcing)
Channel 32
Fuse ratings 320mA for each channel (With physical indication)
Transient protection Peak Power Dissipation 3000 W
Peak Forward Surge Current 250 A
General
Dimension (W x L x H) 126.6 x 274.6 x 25.5 mm
Mounting 35 mm DIN Rail, Wall
Operating temperature -25 ~ 75 °C
Humidity 5 ~ 95 % RH, Non-condensing
*Wet/Dry contact is Jumper selectable

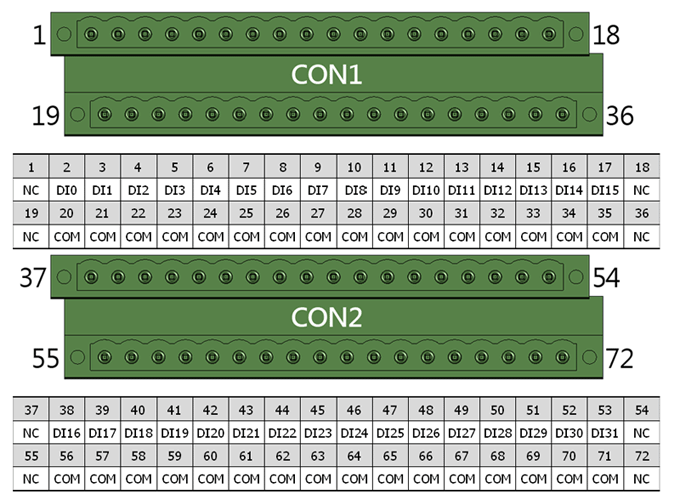

PIN Assignments

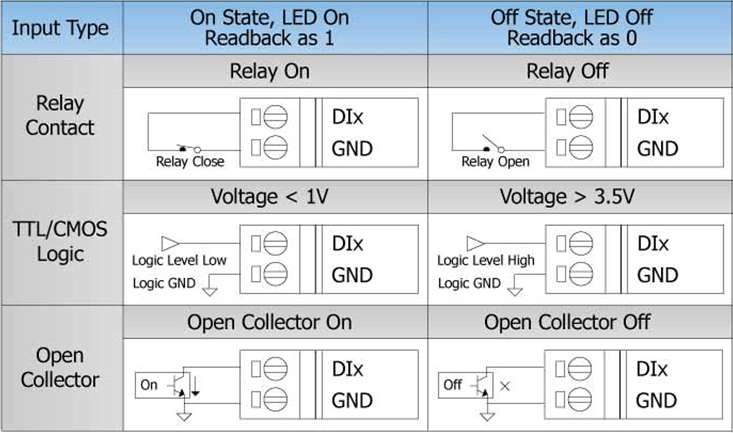

Wiring

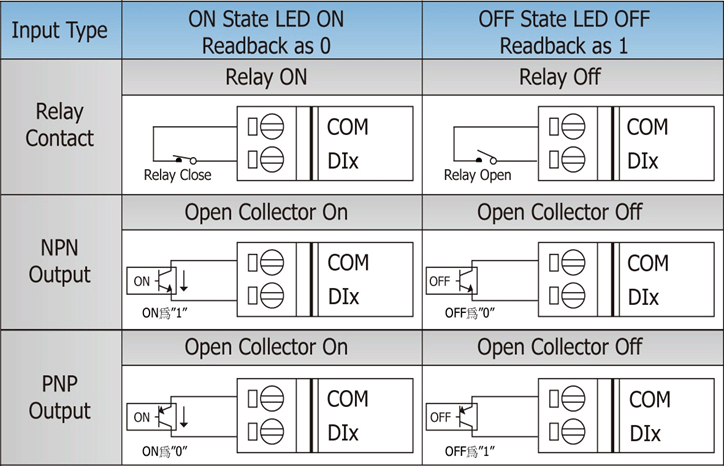

● Dry contact (Current sourcing)

● Dry contact (Current sinking)

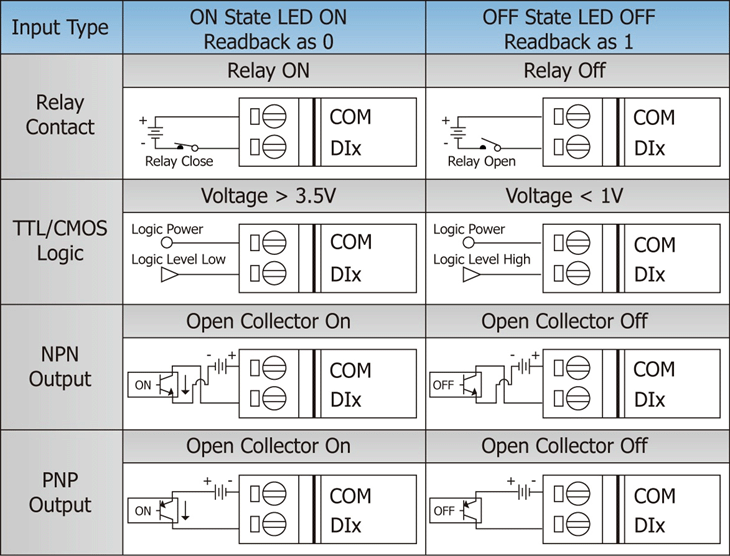

● Wet contact (Current sinking/sourcing)

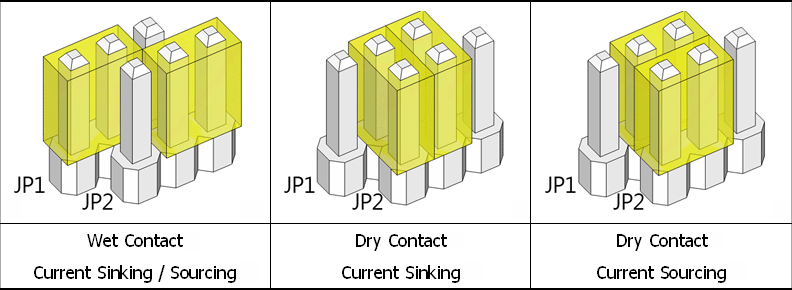

The DN-DI-32DW offers various wire connections to connect with field device to digital input module. It can be switched to different wire connection by changing jumper setting. The detail of jumper settings are described as following table.


NOTE: Please make sure the external power is attached as well when use dry contact wire connection.
DN-DI-32DW CR Termination board for digital input with high EMS protection and removable fuses (RoHS)

CA-3710AM 1m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3720AM 2m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3730AM 3m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3750AM 5m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-37100AM 10m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3710D DB-37 Male-Male D-sub cable 1M, Cable for Daughter Board (180o)
CA-3720D DB-37 Male-Male D-sub cable 2M, Cable for Daughter Board (180o)
