DN-AIO-M
Universal termination board for analog I/O


~ NEW ~
Model: DN-AIO-M


The DN-AIO-M is a termination board for analog input and output modules. It is a general termination board for most kind of analog modules. The size of this termination board is also small and same as other mini termination boards for users' installation.

Digital Output
Channel 16
General
Dimension (W x L x H) 112 mm x 117 mm x 29 mm
Mounting 35 mm DIN Rail, Wall
Operating temperature -25 ~ +75 °C
Humidity 5 ~ 95 % RH, Non-condensing

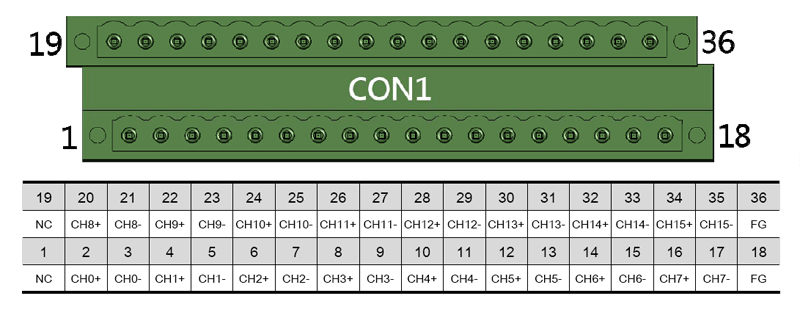

PIN Assignments
Wiring

Voltage/Current Input

Voltage/Current Output

DN-AIO-M CR Universal termination board for analog I/O (RoHS)

CA-3710AM 1m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3720AM 2m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3730AM 3m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3750AM 5m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-37100AM 10m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3710D DB-37 Male-Male D-sub cable 1M, Cable for Daughter Board (180o)
CA-3720D DB-37 Male-Male D-sub cable 2M, Cable for Daughter Board (180o)
