AR-200/AR-400
Accelerometer Data Logger Device

~ NEW ~
Model: AR-200 Model: AR-400

  • 2 or 4 simultaneous, 16-bit resolution ADC
  • Support 2 or 4 IEPE input，and built-in 3 mA excitation current
  • AR-200 support sample rate: 200kHz、100kHz、50kHz
  • AR-400 support sample rate: 125kHz、100kHz、50kHz
  • Max. Recording time：120 seconds
  • Dynamic range：+/- 10V
  • Flexible trigger modes: Push button trigger、Schedule trigger、analog threshold trigger、digital input trigger and utility remote trigger
  • Supports 4 to 32 GB micro SDHC type flash
  • Provide LED indicators
  • 4 kV Contact ESD protection for any terminal
  • Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to 75°C)

The AR-200/AR-400 series is a range of high-performance dynamic signal acquisition modules that are designed specifically for vibration monitoring and analysis. The maximum simultaneous sampling rate for each channel on the AR-200 and AR-400 is up to 200k-Hz and 125k-Hz respectively. The AR-200/AR-400 modules include a built-in 3mA excitation current to power the Integrated Electronics Piezo-Electric (IEPE) accelerometers and a 16-bit A/D converter. The data acquired by the AR-200/AR-400 is saved on a Micro SD card that can be used for offline vibration analysis.
ICP DAS also provides a utility that can be installed on the Host PC that can be easily configured for different triggering modes, as well as changing the sampling rate, and scheduling the sampling time for various applications using the development tools.
Consequently, the AR-200/AR-400 modules are recommended as your best choice for vibration monitoring and measurement.

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

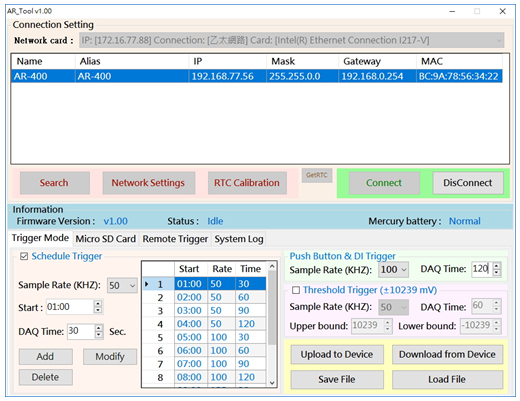

ICP DAS provides the AR_Tool configuration utility to configure devices.
  • Provide device search function.
  • Support trigger mode configuration
  • Support RTC calibration
  • Provide recording file(*.ar) convert to various file type (*.xls, *.csv, *.txt)
  • Support utility remote trigger mode
  • Show system event log

Module Name AR-200 AR-400
Analog Input Interface
Channels 2 (simultaneous sampling) 4 (simultaneous sampling)
ADC Resolution 16 bit
Sample rate (kHz) 50, 100, 200 50, 100, 125
Dynamic range +/- 10V
IEPE 3 mA
Trigger mode Push button trigger、Schedule trigger、Analog threshold trigger、 Digital input trigger、Utility Remote trigger
Connector BNC

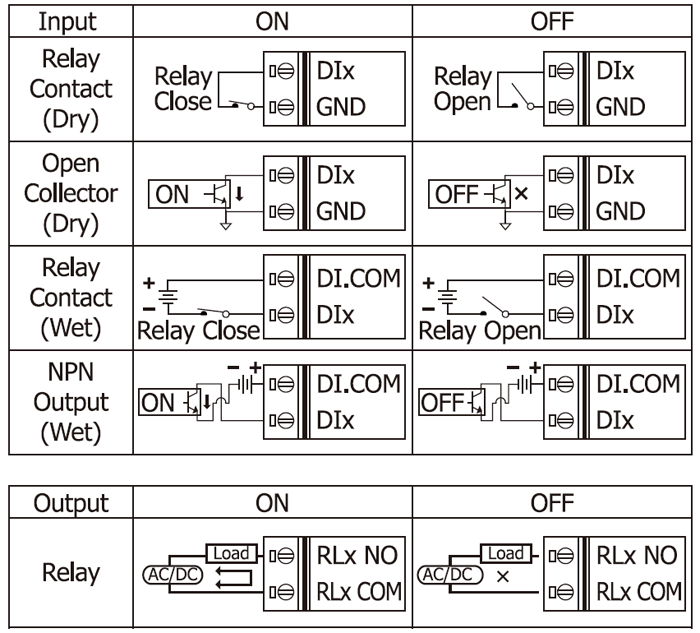

Digital Input Interface
Channels 2, Dry Contact: Source x 1, Wet Contact: Sink or Source x 1
Dry Contact Level Off Voltage Level : Open, On Voltage Level : Close to GND
Wet Contact Level Off Voltage Level : +4 VDC max., On Voltage Level : +10 VDC to +50 VDC
Digital Output Interface
Channels 1, Power Relay, Form A x 1
Contact Rating AC: 125 V@0.6A    DC: 30 V@2 A, 110 V@0.6 A
Ethernet Interface
Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector RJ-45 with LED indicator
SD Card Interface
Storage Media Micro SDHC type flash – support 4 to 32 GB
Recording Format Binary
LED
LED indicator PWR LED, DAQ LED, SD LED
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption 4.3 W
Mechanism
Installation Wall Mount
Dimensions 197 mm x 139 mm x 57 mm (W x L x H)
Environment
Operating Temperature -25 ~ 75 °C
Storage Temperature -30 ~ 80 °C
Humidity 10 ~ 90% RH, non-condensing

AR-200 CR 2-Channels Accelerometer Data Logger device (RoHS)
AR-400 CR 4-Channels Accelerometer Data Logger device (RoHS)
