PEX-C64/PISO-C64U
PCI Express/Universal PCI, 64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking)


Model: PISO-C64U Model: PEX-C64
  • Support the +5 V PCI bus for PISO-C64
  • Support the +3.3 V/+ 5 V PCI bus for PISO-C64U
  • Support PCI Express x1 for PEX-C64
  • Card ID function for PISO-C64U and PEX-C64
  • Output status Readback for PISO-C64U and PEX-C64
  • 64 optically isolated DO (open collector) channels
  • Four isolated banks when using four isolated external power supplies
  • 3750 Vrms photo-isolation protection
  • Supports Plug & Play to obtain I/O resurces
  • No more manually settings of I/O address and IRQ

The PEX-C64 and PISO-C64U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PEX-C64 and PISO-C64U card is designed as a drop-in replacement for the PISO-C64, and users can replace the PISO-C64 by the PEX-C64 and PISO-C64U directly without software/driver modification.

The PISO-C64U universal PCI card supports 3.3 V/5 V PCI bus while the PEX-C64 supports PCI Express bus. These cards provide 64 optically isolated digital output (DO) channels, each of which includes a darlington transistor that provides 3750 Vrms isolation, and an integrated suppression diode for inductive load. These DO channels are allocated into four isolated banks when using four isolated external power supplies. These DO channels act as an interface to field logic signals, eliminate ground-loop problems, and isolate the host computer from damaging voltages. These cards contains has a single DB-37 connector and a single 40-pin male header, each of which contains 32 output channels.

The PEX-C64 and PISO-C64U also adds a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more PEX-C64 and PIO-C64U cards in one computer.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

  • Factory automation
  • Product test
  • Laboratory automation

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

Model Name PEX-C64 PISO-C64U
Digital Output
Isolation Voltage 3750 Vrms
Channels 64
Compatibility Sink, Open Collector
Output Capability 100 mA/+30 V for each channel @ 60% duty
Response Speed 4 kHz (Typical)
General
Bus Type PCI Express x 1 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Card ID Yes (4-bit)
I/O Connector Female DB37 x 1
40-pin Box header x 1
Dimensions (L x W x D) 180 mm x 105 mm x 22 mm
Power Consumption 400 mA @ +3.3 V
200 mA @ +12 V
800 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing

PISO-C64U CR Universal PCI, 64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking) (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors.
PEX-C64 CR PCI Express, 64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking) (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors.

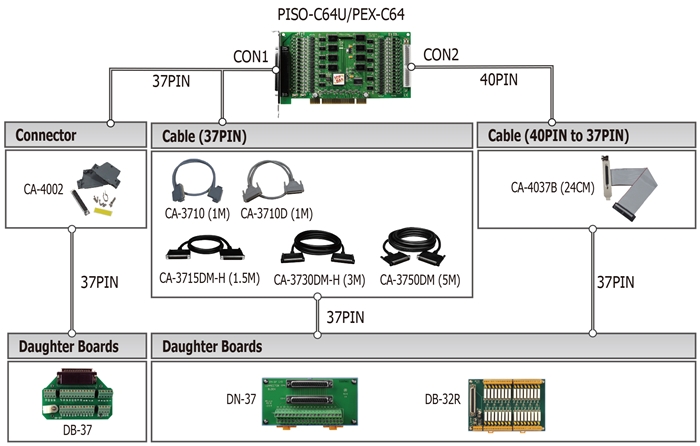

CA-3710 DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-3750DM DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-3750DM-H DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-4002 37-pin Male D-sub connector with plastic cover.
CA-4037B 40-pin flat & D-sub 37-pin Female cable 24 cm.
DB-32R 32-channel relay output board Include : CA-3710D Male- Male D-sub Cable 1.0 M
DB-37 Directly connect signal to D-sub 37-pin connector
DN-37 DIN Rail Mounting 37-pin Connector
