The PISO-A64U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PISO-A64U card is designed as a drop-in replacement for the PISO-A64, and users can replace the PISO-A64 by the PISO-A64U directly without software/driver modification.

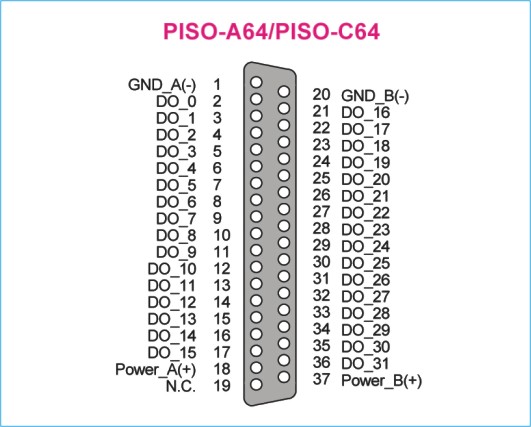

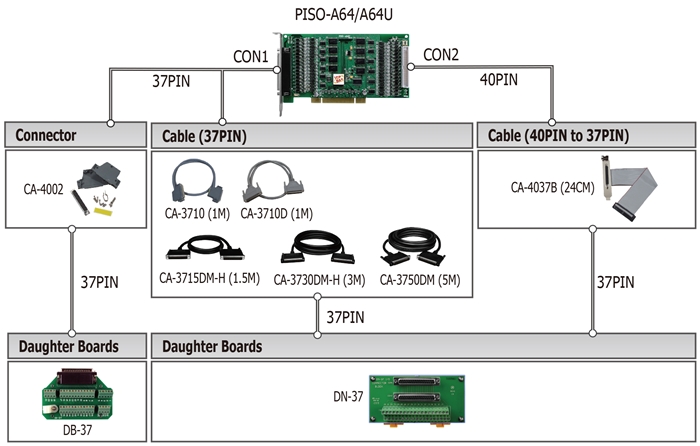

The PISO-A64U universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 64 optically isolated digital output channels, each of which offers a PNP transistor and an integrated suppression diode for the inductive load. The isolated DO channels use a short optical transmission path to transfer an electronic signal between the elements of a circuit and keep them electrically isolated. The open collector outputs (DO channels) are typically used for alarm and warning notification, signal output control, control for external circuits that require a higher voltage level, and signal transmission applications, etc. The board acts as an interface to field logic signals, eliminates ground-loop problems, and isolates the host computer from damaging voltages. These cards have a DB-37 connector and a 40-pin male header, each of which contains 32 output channels.

The PISO-A64U also adds a Card ID switch on board. Users can set Card ID on a board so that the board can be recognized by the ID via software when using two or more PISO-A64U cards in one computer.

These cards support a variety of operating systems, such as DOS, 32-/64-bit Windows XP/2003/2008/7/8 and Windows 10. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.
