PISO-813U
Universal PCI, 32-Channel Single-Ended Isolated Analog Input Board |
|
| |
 |
| Model: PISO-813U |
|
|
 |
- Support the +3.3/+5 V PCI bus
- 12-bit, 10 kS/s A/D converter
- 32 single-ended analog input channels
- 3750 Vrms bus isolation protection
- Built-in DC/DC converter with 3000 VDC protection
- Analog input range
Bipolar: +/-10 V,+/-5 V, +/-2.5 V, +/-1.25 V, +/-0.625 V
Unipolar: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
- Supports Card ID (SMD Switch)
- Programmable gain control: 1, 2, 4, 8, 16
- A/D trigger mode: Software Trigger
- A/D data transfer mode : polling
|
|
|
| |
 |
The PISO-813U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PISO-813U card is designed as a drop-in replacement for the PISO-813, and users can replace the PISO-813 by the PISO-813U directly without software/driver modification.
The PISO-813U card is bus-typed isolated A/D board for IBM or compatible PC and supports 3.3 V/5 V PCI bus. They feature 12-bit 32 single-ended analog inputs, 3750 Vrms bus-typed isolation protection and 10 kS/s data acquisition under DOS and Windows. It is the most cost effective isolated A/D board for the universal PCI in the world.
The PISO-813U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PISO-813U cards in one computer.
These cards support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications. |
| |
 |
- High speed data acquisition system.
- Harsh environment operation.
- Signal isolation.
|
| |
 |
- DOS Lib and TC/BC/MSC sample program (source codes included)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux.
|
| |
 |
| Model Name |
PISO-813U |
| Analog Input |
| Isolation Voltage |
3750 Vrms (Bus Type) |
| Channels |
32 single-ended |
| A/D Converter |
12-bit, 8 μs Conversion time |
| Sampling Rate |
10 kS/s. max. |
| FIFO Size |
N/A |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 MΩ/6 pF |
| Trigger Modes |
Software |
| Data Transfer |
Polling |
| Accuracy |
0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Zero Drift |
+/- 25 ppm/°C of FSR |
| General |
| Bus Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Card ID |
Yes (4-bit) |

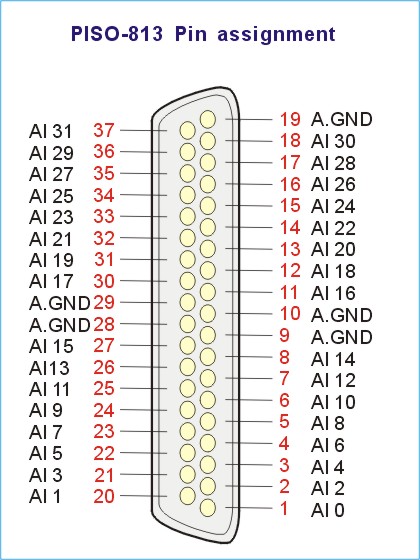

| I/O Connector |
Female DB37 x 1 |
| Dimensions (L x W x D) |
128 mm x 92 mm x 22 mm |
| Power Consumption |
850 mA @ +5 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
| Analog Input Range |
| Gain |
1 |
2 |
4 |
8 |
16 |
| Bipolar |
+/-10 V
+/-5 V |
+/-5 V
+/- 2.5 V |
+/-2.5 V
+/-1.25 V |
+/-1.25 V
+/-0.625 V |
+/- 0.625 V |
| Unipolar |
0 ~ 10 V |
0 ~ 5 V |
0 ~ 2.5 V |
0 ~ 1.25 V |
0 ~ 0.625 V |
| Sampling Rate Max. |
10 kS/s. max. |
|
|
| |
 |
| PISO-813U CR |
Universal PCI, 32-channel isolated analog input board. (RoHS)
Includes one CA-4002 D-Sub connector. |
| PISO-813U/S CR |
Universal PCI, 32-channel isolated analog input board. (RoHS)
Includes one DB-8325 screw terminal board. |
|
| |
 |
| ADP-20/PCI |
Extender, Extended dual 20-pin flat-cable connector to PC slot window |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°)) |
| CA-3715DM-H |
DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS) |
| CA-3730DM-H |
DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS) |
| CA-3750DM-H |
DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| DB-8325 |
Screw terminal board , filter circuitry can be added for PCI-1800H, 1800L |
| DB-37 |
Directly connect signals to the back of PISO-813 |
| DN-37 |
I/O connector block with DIN rail mounting and 37-PIN D-SUB connector on it. |
| 125Ω, 0.1% DIP Resistors |
125 Ω External Resistor for use with Current Input |
|
| |
 |
| |
 |
|
| |
|
|
| |
|
|
