PCI-P16C16U
16-channel isolated digital input & 16-channel open-collector output Board
(Current Sinking, NPN type)


  • Support the +3.3 V/+5 V PCI bus
  • 16 open collector digital output channels (Sink, NPN)
  • 16 optically isolated digital input channels
  • Selectable DC signal input filter
  • AC Signal input with filter
  • External power status LED indicator
  • Card ID function
  • Supports Plug & Play to obtain I/O resources
  • No more manually settings of I/O address and IRQ


Model: PCI-P16C16U


The PCI-P16C16U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-P16C16U. Users can replace the PCI-P16C16 by the PCI-P16C16U directly without software/driver modification.

The PCI-P16C16U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 16 optically isolated Digital Input channels and 16 open collector (Sink, NPN) Digital Output channels. The DI channels provide 5000 Vrms isolation protection that allows the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. The open collector output (DO) channels are typically used for alarm and warning notification, control of signal output, control of external circuits that require a higher voltage level, and signal transmission applications, etc.

The PCI-P16C16U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

The PCI-P16C16U supports various OS versions, such as Linux, DOS, 32/64-bit Windows 8/7/2008/2003/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

Model Name PCI-P16C16U
Digital Input
Isolation Voltage 5000 Vrms (Photo-couple)
Channels 16
Input Voltage Logic 1:AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
Logic 0: AC/DC 0 ~ 1 V
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz (Typical)
Digital Output
Isolation Voltage 5000 Vrms
Channels 16
Compatibility Transistor (Sink, Open Collector)
Output Capability DC: 600 mA/+30 V for one channel @ 100% duty
Response Speed 1 kHz (Typical)
General
Bus Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 16-bit
Card ID Yes (4-bit)

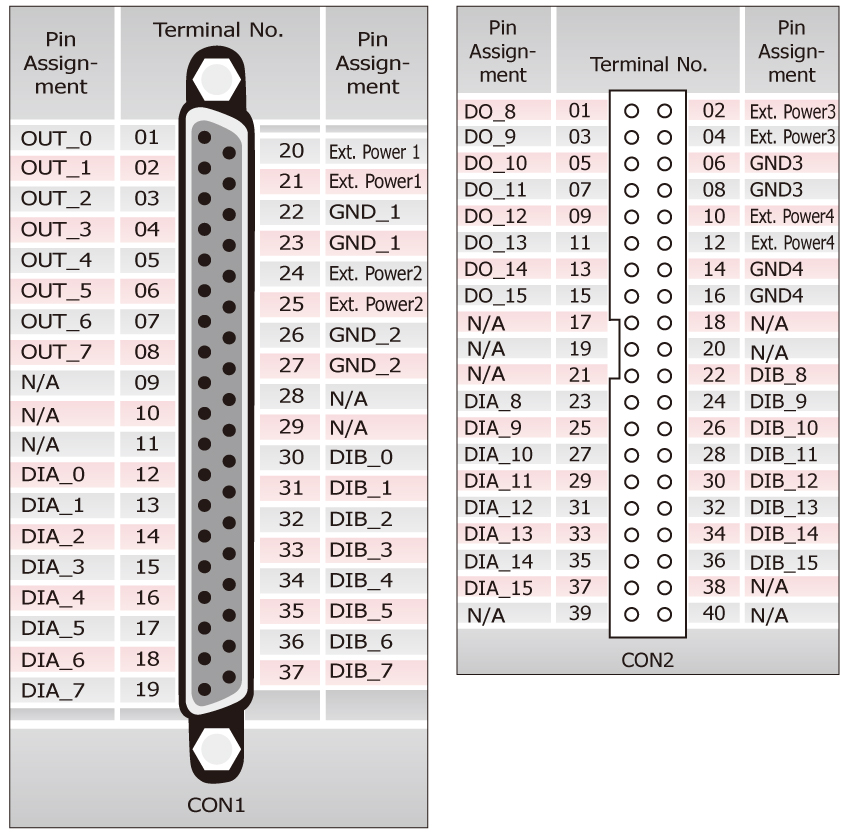

I/O Connector Female DB37 x 1
40-pin box header x 1
Dimensions (L x W x D) 183 mm x 105 mm x 22 mm
Power Consumption 800 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing

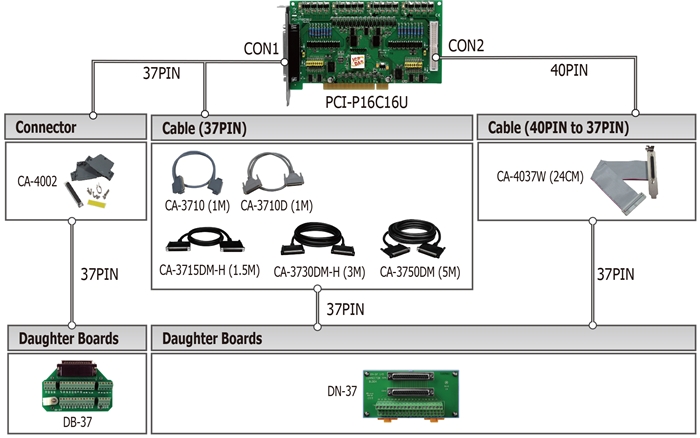

PCI-P16C16U CR Universal PCI, 16-channel isolated digital input.16-channel open-collector output (Sink, NPN) (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors.

CA-3710 DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-3750DM DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-3750DM-H DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-4002 37-pin Male D-sub connector with plastic cover.
CA-4037W 40-pin flat & D-sub 37-pin Female cable 24 cm.
DB-37 Directly connect signal to D-sub 37-pin connector
DN-37 DIN Rail Mounting 37-pin Connector
