DN-8K16P16R
16-channel digital Input Terminal and 16-channel Relay Output Board

Model: DN-8K16P16R Model: I-8042W and I-87042W with
DN-8K16P16R

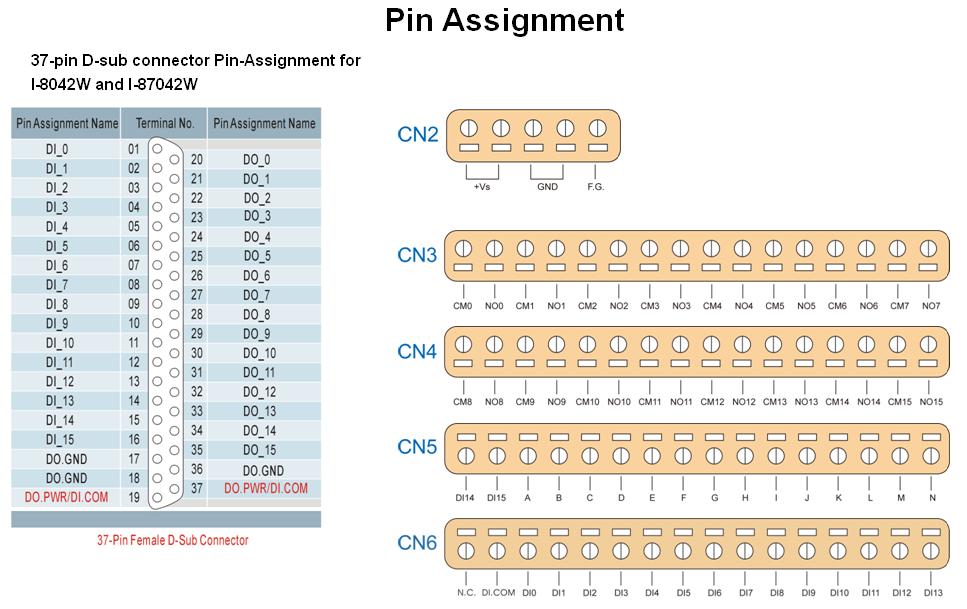

  • 37-pin D-sub connector to quickly link to a I-8042W or I-87042W
  • 16 Form A Signal Relay
  • 16 LEDs to display the state of individual relays
  • Screw terminals for field wiring
  • Power Input: +12 ~ +30 VDC
  • Operating temperatures: -25 ~ +75°C
  • DIN-Rail mounting for industrial usage

Digital Input
Input Channels 16
Type Pin-to-pin terminals
Input Range Depending on I-8042W/I-87042W used
Relay Output
Channels 16
Contact Arrangement SPST-NO (1 Form A)
Max. Switching Voltage 125 VDC, 270 VAC Rated
Contact Current 3 A
Max. Contact Current 5 A
Max. Contact Capacity 1250 VA, 150 W
Operate Time (typical) 6 ms
Release Time (typical) 3 ms
Electrical Life (Resistive Load) 250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute)
250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute)
Mechanical Life 20,000,000 ops. At no load. (300 ops./minute)
Mechanical
Dimensions 118 mm x 174 mm
Installation DIN-Rail mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10% ~ 90%, no condensing
Power Requirements
Power Input +12 ~ 30 VDC
Power Consumption 0.125 A@30 V = 3.75 W

DN-8K16P16R 16-channel digital input terminal and 16-channel relay output board
Include: CA-3710D Male- Male D-sub Cable 1.0 M

CA-3710 Male-Male D-sub cable 1M (45°)
CA-3710D Male-Male D-sub cable 1M (180°)
CA-3720 Male-Male D-sub cable 2M (45°)
CA-3720D Male-Male D-sub cable 2M (180°)
