DB-32R/DB-16P16R
32-channel Relay Output Board/16-channel Input Terminal and 16-channel Relay Output Board |
|
| |
 |
 |
| Model: DB-32R |
Model: DB-16P16R |
|
|
 |
- Form A Signal Relay

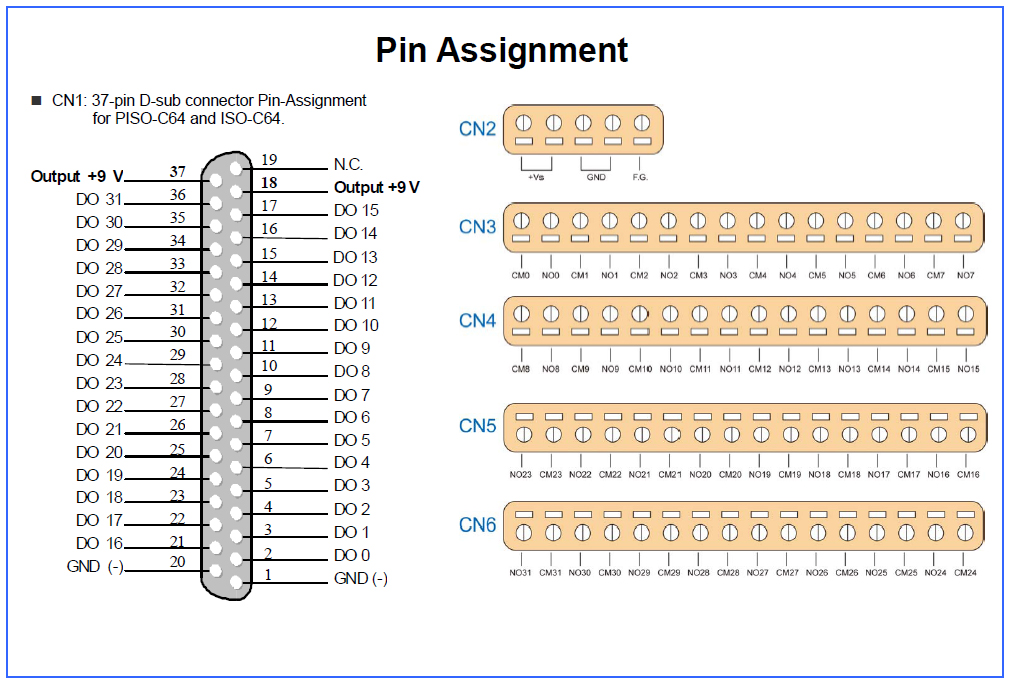

- The DB-32R accepts 37-pin connectors to control 32 form A relays for use with PISO-C64 and ISO-C64
- The DB-16P16R accepts 37-pin connectors to control 16 form A relays and 16-channle input terminal for use with PISO-P32C32 and ISO-P32C32
- Each LED is displayed when the corresponding relay is activated Screw terminals for field wiring
|
|
|
| |
 |
| Model |
DB-32R |
DB-16P16R |
| Digital Input |
| Input Channels |
- |
16 |
| Type |
- |
Pin-to-pin terminals |
| Input Range |
- |
Depending on PCI/ISA card used |
| Relay Output |
| Channels |
32 |
16 |
| Contact Arrangement |
SPST-NO (1 Form A) |
| Max. Switching Voltage |
125 VDC, 270 VAC Rated |
| Contact Current |
3 A |
| Max. Contact Current |
5 A |
| Max. Contact Capacity |
1250 VA, 150 W |
| Operate Time (typical) |
10 ms |
| Release Time (typical) |
10 ms |
| Electrical Life (Resistive Load) |
250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute) |
| 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute) |
| Mechanical Life |
20,000,000 ops. At no load. (300 ops./minute) |
| Mechanical |
| Dimensions |
118 mm x 174 mm |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10% ~ 90%, no condensing |
| Power Requirements |
| Power Input |
+12 ~ 30 VDC |
| Power Consumption |
0.25 A @ +24 V Max. |
|
| |
 |
| DB-32R CR |
32-channel relay output board (RoHS)
Include : CA-3710D Male- Male D-sub Cable 1.0M |
| DB-16P16R |
16-channel input terminal and 16-channel relay output board
Include : CA-3710D Male- Male D-sub Cable 1.0M |
|
| |
 |
| CA-3710 |
Male-Male D-sub cable 1M (45°) |
| CA-3710D |
Male-Male D-sub cable 1M (180°) |
| CA-3720 |
Male-Male D-sub cable 2M (45°) |
| CA-3720D |
Male-Male D-sub cable 2M (180°) |
|
| |
|
