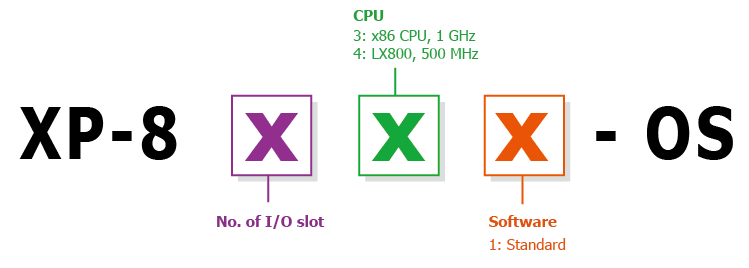

| XP-8000 (Windows Embedded Standard 2009/7 Based PAC) |
 |
 |
Will be available |
 |
Available soon |
 |
Will be phased out |
 |
Phased out |
|
Standard XP-8000 (Windows Embedded Standard 2009/7 Inside)
The controller supports following software development tools:
1. DLLs of I/O modules for VS.NET 2005/2008
2. OPC server for SCADA software |
| Model |
OS |
Pre-Installed Software |
CPU |
Flash |
DDR SDRAM |
VGA Resolution |
Ethernet Port |
RS-232/RS-485 |
I/O Slot |
|
XP-8031-WES7 |
WES7 |
None |
x86 CPU,
1 GHZ,
dual-core |
32 GB |
2 GB DDR3 |
1600 x 1200 |
2 |
4 |
0 |
 |
XP-8131-WES7 |
1 |
|
XP-8331-WES7 |
3 |
|
XP-8731-WES7 |
7 |
| |
|
XP-8041 |
WES2009 |
None |
LX 800
500 MHz |
4 GB |
1 GB |
1600 x 1200 |
2 |
5 |
0 |
|
XP-8341 |
4 |
3 |
|
XP-8741 |
7 |
| |
|
XP-8141-Atom |
WES2009 |
None |
Atom Z520 (1.33 GHz) |
16 GB |
1 GB |
1600 x 1200 |
2 |
4 |
1 |
|
XP-8341-Atom |
3 |
|
XP-8741-Atom |
7 |
|
| |
|
| |

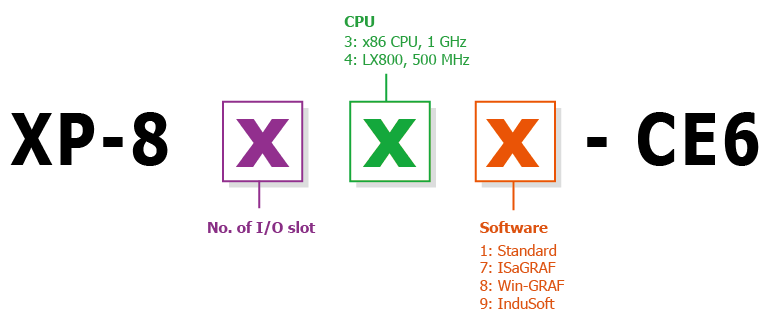

| XP-8000-CE6 (WinCE 6.0 Based PAC) |
 |
|
Will be available |
|
Available soon |
|
Will be phased out |
|
Phased out |
|
Standard XP-8000-CE6 (Windows CE6 R3 Core Inside)
The controller supports following software development tools:
1. DLLs of I/O modules for VS.Net 2005/2008
2. DLLs of Modbus/RTU and Modbus/TCP for VS.Net 2005/2008
3. OPC server (Quicker) |
| Model |
OS |
Pre-Installed Software |
CPU |
Flash |
DDR SDRAM |
VGA Resolution |
Ethernet Port |
RS-232/RS-485 |
I/O Slot |
|
XP-8031-CE6 |
CE 6.0 |
None |
x86 CPU,
1 GHz,
dual-core |
32 GB |
2 GB
DDR3 |
1024 x 768 |
2 |
4 |
0 |
|
XP-8131-CE6 |
1 |
|
XP-8331-CE6 |
3 |
|
XP-8731-CE6 |
7 |
| |
|
XP-8041-CE6 |
CE 6.0 R3 Core |
None |
AMD LX 800 500 MHz |
4 GB |
512 MB |
1024 x 768 (or above) |
2 |
5 |
0 |
|
XP-8341-CE6 |
4 |
3 |
|
XP-8741-CE6 |
7 |
| |
|
XP-8141-Atom-CE6 |
CE 6.0 |
None |
Atom Z510 (1.1 GHz) |
8 GB |
512 MB
DDR2 |
1024 x 768 |
2 |
4 |
1 |
|
XP-8341-Atom-CE6 |
3 |
|
XP-8741-Atom-CE6 |
7 |
|
| |
|
| |
Win-GRAF Standard XP-8000-CE6 (Windows CE6 R3 Core Inside)
The controller fully supports all five of the IEC61131-3 standard PLC languages:
1. Ladder diagram,
2. Function block diagram,
3. Sequential function chart,
4. Structured text,
5. Instruction List.
It supports Modbus protocol and can link to distributed I/O modules with Modbus or DCON protocol via the RS-232/485 or Ethernet. |
| Model |
OS |
Pre-Installed Software |
CPU |
Flash |
DDR SDRAM |
VGA Resolution |
Ethernet Port |
RS-232/RS-485 |
I/O Slot |
|
XP-8038-CE6 |
CE 6.0 |
Win-GRAF |
x86 CPU,
1 GHz,
dual-core |
32 GB |
2 GB
DDR3 |
1024 x 768 |
2 |
4 |
0 |
|
XP-8138-CE6 |
1 |
|
XP-8338-CE6 |
3 |
|
XP-8738-CE6 |
7 |
| |
|
XP-8048-CE6 |
CE 6.0 R3 Core |
Win-GRAF |
AMD LX 800 500 MHz |
4 GB |
512 MB |
1024 x 768
(or above) |
2 |
5 |
0 |
|
XP-8348-CE6 |
4 |
3 |
|
XP-8748-CE6 |
7 |
|
| |
|
| |
|
Will be available |
|
Available soon |
|
Will be phased out |
|
Phased out |
|
ISaGRAF Standard XP-8000-CE6/XP-8000-Atom-CE6 (Windows CE6 R3 Core Inside)
The controller fully supports all five of the IEC61131-3 standard PLC languages:
1. Ladder diagram,
2. Function block diagram,
3. Sequential function chart,
4. Structured text,
5. Instruction List plus flow chart.
It supports Modbus protocol and can link to distributed I/O modules with Modbus or DCON protocol via the RS-232/485 or Ethernet. |
| Model |
OS |
Pre-Installed Software |
CPU |
Flash |
DDR SDRAM |
VGA Resolution |
Ethernet Port |
RS-232/RS-485 |
I/O Slot |
|
XP-8037-CE6 |
CE 6.0 |
ISaGRAF |
x86 CPU,
1 GHz,
dual-core |
32 GB |
2 GB
DDR3 |
1024 x 768 |
2 |
4 |
0 |
|
XP-8137-CE6 |
1 |
|
XP-8337-CE6 |
3 |
|
XP-8737-CE6 |
7 |
| |
|
XP-8047-CE6 |
CE 6.0 R3 Core |
ISaGRAF |
AMD LX 800 500 MHz |
4 GB |
512 MB |
1024 x 768
(or above) |
2 |
5 |
0 |
|
XP-8347-CE6 |
4 |
3 |
|
XP-8747-CE6 |
7 |
| |
|
XP-8147-Atom-CE6 |
CE 6.0 |
ISaGRAF |
Atom Z510 (1.10 GHz) |
8 GB |
512 MB |
1024 x 768 |
2 |
2 |
1 |
|
XP-8347-Atom-CE6 |
3 |
|
XP-8747-Atom-CE6 |
7 |
|
| |
|
| |
|
Will be available |
|
Available soon |
|
Will be phased out |
|
Phased out |
|
InduSoft Standard XP-8000-CE6/XP-8000-Atom-CE6 (Windows CE6 R3 Core Inside)
The controller can be used to develop following applications:
1. Human Machine Interfaces (HMI)
2. Supervisory Control and Data Acquisition System (SCADA)
3. Web server |
| Model |
OS |
Pre-Installed Software |
CPU |
Flash |
DDR SDRAM |
VGA Resolution |
Ethernet Port |
RS-232/RS-485 |
I/O Slot |
|
XP-8039-CE6 |
CE 6.0 |
InduSoft |
x86 CPU,
1 GHz, dual-core |
32 GB |
2 GB DDR3 |
1024 x 768 |
2 |
4 |
0 |
|
XP-8139-CE6 |
1 |
|
XP-8339-CE6 |
3 |
|
XP-8739-CE6 |
7 |
| |
|
XP-8049-CE6 |
CE 6.0 R3 Core |
InduSoft |
AMD LX 800 500 MHz |
4 GB |
512 MB |
1024 x 768
(or above) |
2 |
5 |
0 |
|
XP-8349-CE6 |
4 |
3 |
|
XP-8749-CE6 |
7 |
| |
|
XP-8149-Atom-CE6 |
CE 6.0 |
InduSoft |
Atom Z510 (1.10 GHz) |
8 GB |
512 MB |
1024 x 768 |
2 |
4 |
1 |
|
XP-8349-Atom-CE6 |
3 |
|
XP-8749-Atom-CE6 |
7 |
|
| |
|
| |
|
Will be available |
|
Available soon |
|
Will be phased out |
|
Phased out |
|
ISaGRAF & InduSoft Based XP-8000-CE6 (Windows CE6 R3 Core Inside)
The controller includes features of ISaGRAF and InduSoft. |
| Model |
OS |
Pre-Installed Software |
CPU |
Flash |
DDR SDRAM |
VGA Resolution |
Ethernet Port |
RS-232/RS-485 |
I/O Slot |
|
XP-8046-CE6 |
CE 6.0 R3 Core |
Indusoft + ISaGRAF |
AMD LX 800 500 MHz |
4 GB |
512 MB |
1024 x 768
(or above) |
2 |
5 |
0 |
|
XP-8346-CE6 |
4 |
3 |
|
XP-8746-CE6 |
7 |
| |
|
XP-8146-Atom-CE6 |
CE 6.0 |
Indusoft + ISaGRAF |
Atom Z510 (1.10 GHz) |
8 GB |
512 MB |
1024 x 768 |
2 |
4 |
1 |
|
XP-8346-Atom-CE6 |
3 |
|
XP-8746-Atom-CE6 |
7 |
|
| |
|
| |
