USB-87P1/USB-87P2/USB-87P4/USB-87P8
I/O Expansion Unit


Model: USB-87P1 Model: USB-87P2 Model: USB-87P4 Model: USB-87P8

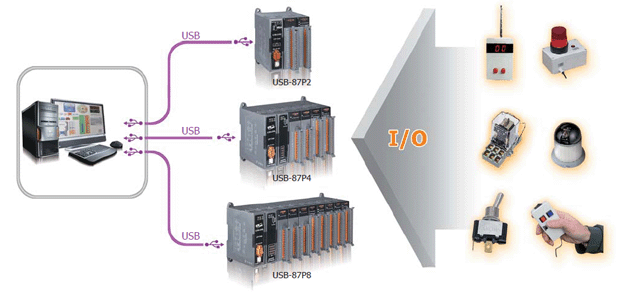

USB-87Pn is an unit to expand I/O via the USB. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75°C). To simplify installation and maintenance of I/O modules, it provides many useful features, such as: hot swap allowed, auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.

There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, ActiveX, Labview driver, InduSoft driver, Linux driver, OPC server. The I-87K series I/O modules plugged in the USB-87Pn can be easily integrated into variant software system.

  • One USB Port
  • Hot Swap Allowed
  • Auto Configuration
  • LED Indicators for Fault Detection
  • DCON Protocol
  • 1/2/4/8 I/O Slots for I-87K Modules
  • Operating Temperature: -25 ~ +75°C


Models USB-87P1 USB-87P2 USB-87P4 USB-87P8
Interface Type (Full speed with USB 1.1 specifications)
Cable USB type A connector
Baud Rate 115200 bps Default
Isolation 3000 VDC
ESD Protection +/-4 K Contact Discharge and +/-8 K Air Discharge
Communication Protocol DCON Protocol (ASCII Format)
Switch
DIP Switch 1-bit × 1, For auto configuration
LED Indicators
Power Yes
System Ready Yes
Auto Configuration Yes
Slot Status Yes
I/O Expansion Slots
Hot Swap Yes
Auto Configuration Yes
Support Module Type High profile I-87K module only
Slots Numbers 1 2 4 8
Mechanical
Dimensions (W x L x H) 64 mm x 120 mm x 110 mm 95 mm x 132 mm x 111 mm 188 mm x 132 mm x 111 mm 312 mm x 132 mm x 111 mm
Installation DIN-Rail or Wall Mounting
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Ambient Relative Humidity 10 ~ 90% RH (non-condensing)
Power
Input Range +10 ~ +30 VDC
Reverse Polarity Protection Yes
Isolation 1000 VDC
Frame Ground Yes
Consumption 1 W 1 W 2 W 2.4 W
Power Board Driving 5 W 8 W 30 W

USB-87P1 CR 1 slot I/O Expansion Unit (RoHS)
USB-87P2 CR 2 slot I/O Expansion Unit (RoHS)
USB-87P4 CR 4 slot I/O Expansion Unit (RoHS)
USB-87P8 CR 8 slot I/O Expansion Unit (RoHS)

DP-660 AC 85 ~ 270 V input, DC 24 V/2.5 A and 5 V/0.5 A output power supply
DP-665 AC 85 ~ 270 V input, DC 24 V/1.7 A and 5 V/0.5 A output power supply
DP-1200 CR AC 85 ~ 270 V input, DC 24 V/5.0 A output power supply (RoHS)
MDR-60-24 CR AC 85 ~ 264 V input, DC 24 V/2.5 A Output Industrial DIN Rail Power Supply (RoHS)
