| ~ NEW ~ |
|
 |
 |
| Model: ANT-421-05 |
Model: ANT-Base-01 |
|
|
 |
| ANT-421-05 |
- 2G GSM/GPRS Antenna (850/900/1800/1900 MHz)
- 3G WCDMA Antenna (850/1900/2100 MHz)
- 4G LTE Antenna (800/850/900/1800/2100/2600 MHz)
- SMA Male (Plug)
- Omni-Directional
|
| |
| ANT-Base-01 |
- Support 3G/4G Antenna
- Magnetic Disk Base
- SMA Male to SMA Female
|
|
|
| |
 |
ANT-421-05 is a 5dBi 4G External Antenna.
ANT-Base-01 is a Antenna Base. |
| |
|
| Model |
ANT-421-05 |
ANT-Base-01 |
| Frequency |
698 ~ 960 MHz/1710 ~ 2110 MHz/2310 ~ 2690 MHz |
| V.S.W.R. |
3.0 @ 698 ~ 960 MHz
4.0 @ 1710 ~ 1800 MHz
2.5 @ 1800 ~ 2690 MHz |
| Gain |
1.5 dBi @ 698 ~ 960 MHz
4.0 dBi @ 1710 ~ 2110 MHz
5.0 dBi @ 2110 ~ 2500 MHz
3.5 dBi @ 2500 ~ 2690 MHz |
| Operating Temperature |
- 30 °C ~ + 80 °C |
| Storage Temperature |
- 30 °C ~ + 85 °C |
|
| |
 |
| Model |
ANT-421-05 |
ANT-Base-01 |
| Connector Type |
SMA Male (Plug) |
SMA Male to SMA Female |
| Material of Radiator |
Cu (Plated) |
| Material of Coaxial Cable |
- |
RG174 Cable/1500 mm |

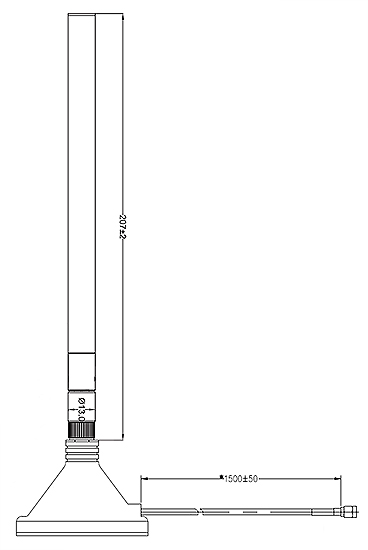

| Deminsions (L x W x H) |
207 mm/13 mm |
60 mm/42 mm |
|
| |
 |
 |
| |
 |
| ANT-421-05 |
5 dBi 4G External Antenna (Support 3G/4G) |
| ANT-Base-01 |
Antenna Base/1500 mm (Support 3G/4G) |
|
| |
|
