| Model: ANT-15YG-1 |
|
|
 |
- 802.11b/g
- 15 dBi
- N Type Female (Jack)
- N Type Male (Plug) to RP SMA Male (Plug) Cable

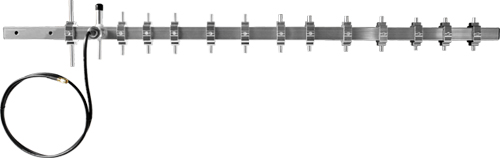

- Yagi Antenna
|
|
|
| |
 |
| ANT-15YG is a 15 dBi Antenna |
| |
 |
 Default Antenna |
| |
ANT-124-03 |
ANT-124-05 |
ANT-8 |
ANT-15 |
ANT-15YG-1 |
ANT-18 |
ANT-21 |
| SST-2450 |
300 m |
350 m |
550 m |
1100 m |
1100 m |
1400 m |
1750 m |
| ZB-2000-T |
100 m |
115 m |
180 m |
360 m |
360 m |
450 m |
560 m |
| ZB-2000-PA |
None |
700 m |
1000 m |
2000 m |
2000 m |
2560 m |
3150 m |
| ZT-2000 |
None |
700 m |
1000 m |
2000 m |
2000 m |
2560 m |
3150 m |
| |
※ These values represent the average LOS (Line of Sight) transmission range and are based on an elevation of three meters
※ Transmission range values should only be used as a reference and should be adjusted accordingly depending on the actual environment |
|
| |
 |
 |
 |
 |
 |
| |
 |
| Antenna Type |
| Operating Environment |
Outdoor |
| Radiation |
Directional Sector |
| Electrical Specifications |
| Frequency Range |
2400 ~ 2500 MHz |
| Gain |
15 dBi |
| VSWR |
1:1.5 (Max.) |
| Polarization |
Linear |
| HPBW/Horizontal |
25° |
| HPBW/Vertical |
15° |
| Power Handing |
15 W (Max.) |
| Impedance |
50 Ω |
| Cable |
RG-58, 100 cm |
| Connector |
N Type Female |
| Environmental and Mechanical Characteristics |
| Operating Temperature |
-40 ~ +80°C |
| Radome Material |
Aluminum |
| Weight |
570 g |
| Dimensions (L x W) |
770 mm x 50 mm x 45 mm |
|
| |
 |

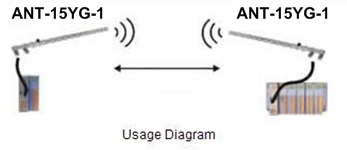

| ANT-15YG-1 |
5 km, 2.4 GHz External Antenna (Directional) |
|
| Important Note: Distance data is for reference only. Actual results may be different depending on the environment. |
| |
 |
| 3S005 |
HDF 200 cable, 3 meter long N type male to RP-SMA male |
| 3S001-1 |
RG58A/U 1 Meter Long SMA male to RP-SMA male |
|
| |
|
