ANF-2401/S
ANF-2401-EU/S

1 W amplifier


~ Phased out ~
Model: ANF-2401

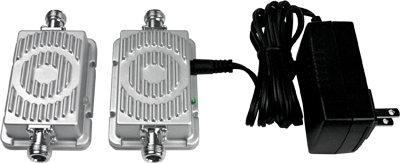

Designed for extending the range of 2.4 GHz wireless radio devices, the Smart-Amp is particularly effective when used with Direct Sequence or Frequency Hopping Spread Spectrum radio modems. The unit provides transmit power amplification and receives signal gain. Full output power of 1W is achieved with only 4mW input to the amplifier. Above 4 mW input, the smartamp attenuates the input signal power and maintains the output power typically at 1W. Substantial discounts available for OEMs and large volume purchases. Also available in 900Mhz & 5.8GHz versions. Contact sales office for details.

Operating Range 2400-2500 MHz
Operating Mode TDD
Lightning Protection Direct DC ground at antenna
DC Surge Protection 600 Watts TVS @ 9 VDC

Operating Temperature -40 to +70 degree C
Power 1.2 A @ 9 VDC
Dimensions Amplifier: 4.7” L X 3.5” W X 1.5”H
DC Injector: 3.5” L X 3” W X 1.18” H
Weight Amplifier: 0.9 lb
DC injector: 0.4 lb
RF Connector N, Female
Smart Function Yes

Transmit Gain up to 24 dB
Transmit input power 1 mW min
200 mW max

Receive Gain 15 dB typical
Frequency Response +/- 1 dB
Noise Figure 3.5 dB

ANF-2401/S 1 W amplifier (Adaptor for America, Asia)
ANF-2401-EU/S 1 W amplifier (Adaptor for Europe)
