Nonblocking architecture, line rate for all packet sizes
Fully integrated packet buffer
DIP switch alarm setting for Port’s break
Power loss alarm
Supports 9216 Byte jumbo frames
Supports Auto Negotiation and Auto MDI/MDI-X
Supports Dual +12 ~ 48 VDC power input and 1 relay output
Supports operating temperatures from – 40 ~ +75°C

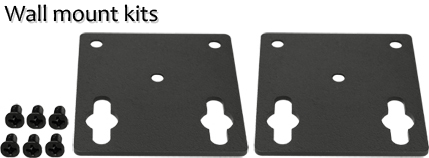

DIN-Rail, Wall Mounting (optional)
The NSM-316G is 16-port unmanaged full Gigabit Ethernet switch, Energy Efficient Ethernet™ (EEE) , Port’s loss link Break Alarm, Power loss Alarm.
Technology
Standards
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity
Processing Type
Store & forward, wire speed switching
MAC Addresses
8K
Packet buffer memory
512KByte
Jumbo Frames
9216 Byte
Flow Control
IEEE802.3x flow control, back pressure flow control
Interface
RJ-45 Ports
10/100/1000 BaseT(X), 10/100BaseT(X) auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection
0.16A @ 48VDC Idle without loading; 0.2A @ 48VDC with full loading (0.12 W per ports)
0.31A @ 24VDC idle without loading; 0.39A @ 24VDC with full loading (0.12 W per ports)
Alarm Contact
One relay output with current carrying capacity of 1A @ 30 VDC
