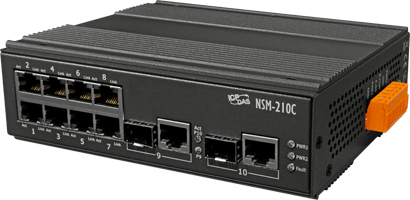

NSM-210C
8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch


 ~ NEW ~
Model: NSM-210C

  • Up to 2 Gigabit uplinks for high bandwidth data aggregation SFP socket for Easy and Flexible Fiber Expansion
  • Supports Auto Negotiation and Auto MDI/MDI-X
  • Supports Dual +12 ~ 48 VDC power input and 1 relay output
  • Supports operating temperatures from -25 ~ +75°C
  • Power loss alarm

The NSM-210C is 8 Port 10/100 Base copper and 2 Gigabit fiber optic/copper combo port Ethernet Switch, Supports Auto Negotiation 、 Auto MDI/MDI-X 、high-speed(100 Mbps) and high-distance transmissions . Apart from this, NSM-210C supports dual power and provides a wide +12 VDC ~ +48 VDC power range to fit all the common power standards found in industrial automation, without external power converters.

Technology
Standards IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
MAC Addresses 8K
Frame Buffer Memory 1 Mbit
Flow Control IEEE 802.3x flow control, back pressure flow control
Interface
RJ-45 Ports 8x 10/100BaseT(X) , 2x 10/100/1000 BaseT(X) (Combo SFP)
Auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection
Fiber Ports 2x 1000Base SFP slot
LED Indicators PWR1, PWR2, FAULT, SFP & Gigabit Act, 8-Port 10/100 Link and Act
Ethernet Isolation 1500 Vrms 1 minute
Power Input
Redundant Input Range +12 VDC ~ +48 VDC (Non-isolation)
Power Consumption 0.15A @ 24VDC idle without loading;
0.25A @ 24VDC with full loading
Alarm Contact One relay output with current carrying capacity of 1A @ 30 VDC
Protection Power reverse polarity protection
Connector 6-Pin Removable Terminal Block (Power & Relay)
Mechanical
Casing Metal with an IP30 ingress protection rating
Dimensions (W x L x H) 51 mm x 154 mm x 118 mm
Installation DIN-Rail or Wall Mounting (with optional kit)
Environmental
Operating Temperature -25 °C ~ + 75 °C
Storage Temperature -40 °C ~ + 85 °C
Ambient Relative Humidity 10 ~ 90% RH, non-condensing

NSM-210C CR 8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch (RoHS)

DR-120-48 48 V/2.5 A, 120 W Single Output Industrial DIN Rail Power Supply
MDR-60-48 48 V/1.25 A, 60 W Single Output Industrial DIN Rail Power Supply
DR-120-24 24V/5 A, 120 W Single Output Industrial DIN Rail Power Supply
SDR-240-24 24 V/10 A, 240 W Single Output Industrial DIN Rail Power Supply with PFC Function

SFP-1G85M-SX Multi-mode 850 nm, 0.5 km SFP module
SFP-1G13M-SX2 Multi-mode 1310 nm, 2 km SFP module
SFP-1G13S-LX Single-mode 1310 nm, 10 km SFP module
SFP-1G13S-LX20 Single-mode 1310 nm, 20 km SFP module
SFP-1G13S-LHX Single-mode 1310 nm, 40 km SFP module
SFP-1G15S-XD Single-mode 1550 nm, 60 km SFP module
