UA Series IIoT Communication Server: Connect IT with OT, Integrate Cloud and Web APPs
The IIoT Cloud Solution of ICP DAS provides UA series of IIoT Communication Server to upgrade the front-end devices to the Cloud, connect IT with OT, link Cloud and Web APPs, and integrate the cloud-based Internet of Things (IoT). This solution can improve system performance and enhance global IIoT competitiveness of the system.

Built-in OPC UA, the industrial communication standard:
    Connect OT to IT for integrating devices to the Cloud.
Built-in MQTT, the active IoT transmission technology:
    Accelerate data exchange and optimize the network resources.
Support Data Logger:
    Save l/O data directly to Local CSV log file or remote database.
Support IFTTT, for Cloud logic control:
    Send device event notifications to LINE, FB, Twitter, Mail, etc. over 500 APPs.
Support Modbus Protocol:
    Connect Modbus TCP/RTU/ASCII Remote I/O Modules.
Support EtherNet/IP Protocol:
    Connect EIP-2000 Series EtherNet/IP Remote I/O Modules of ICP DAS.
Support Cloud platforms:
    Connect to Amazon AWS, Microsoft Azure or other IoT Cloud platforms to send over the I/O data.

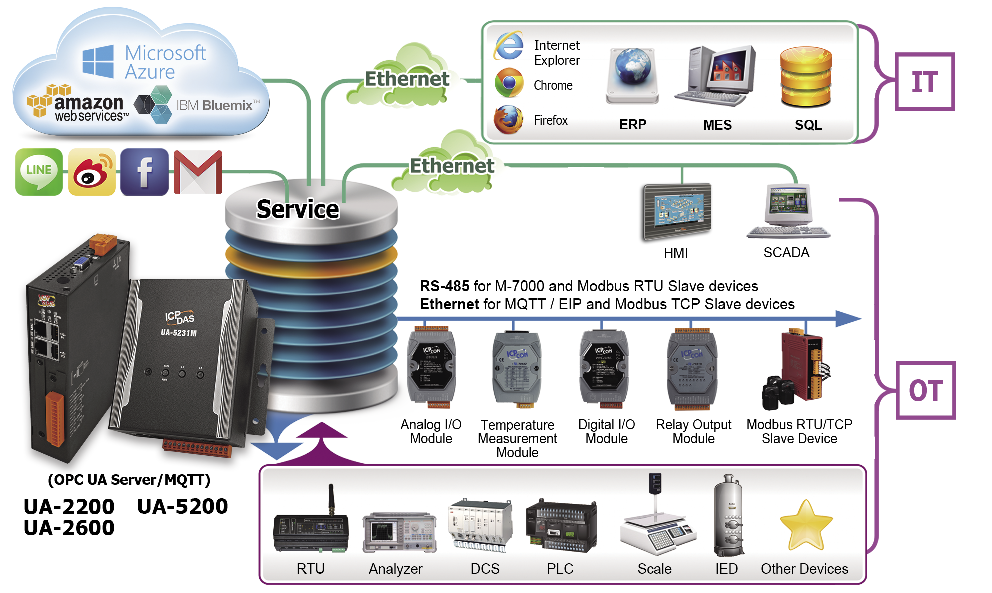

  System Architecture




  IT Integration Technology





Technology:

• OPC UA: The Industrial Communication Standard.
• MQTT: The IoT Active Transmission Technology.
• Data Logger: I/O data save directly to Local LOG file or Remote Database.
• IFTT: The Cloud Logic Control (IF This Then That).
• Cloud: The IIoT Cloud Connection Technology.


  OT Integration Technology





Technology:

• OPC UA: The New Industrial Communication Standard.
• MQTT: The IoT Active Transmission Technology.
• Modbus: A protocol widely used within Industrial Automation Systems.
• EtherNet/IP: Industrial Ethernet protocol, based on TCP/IP protocol and compatible
with factory and enterprise networks.




TOP | HOME





  Built-in OPC UA Server Service

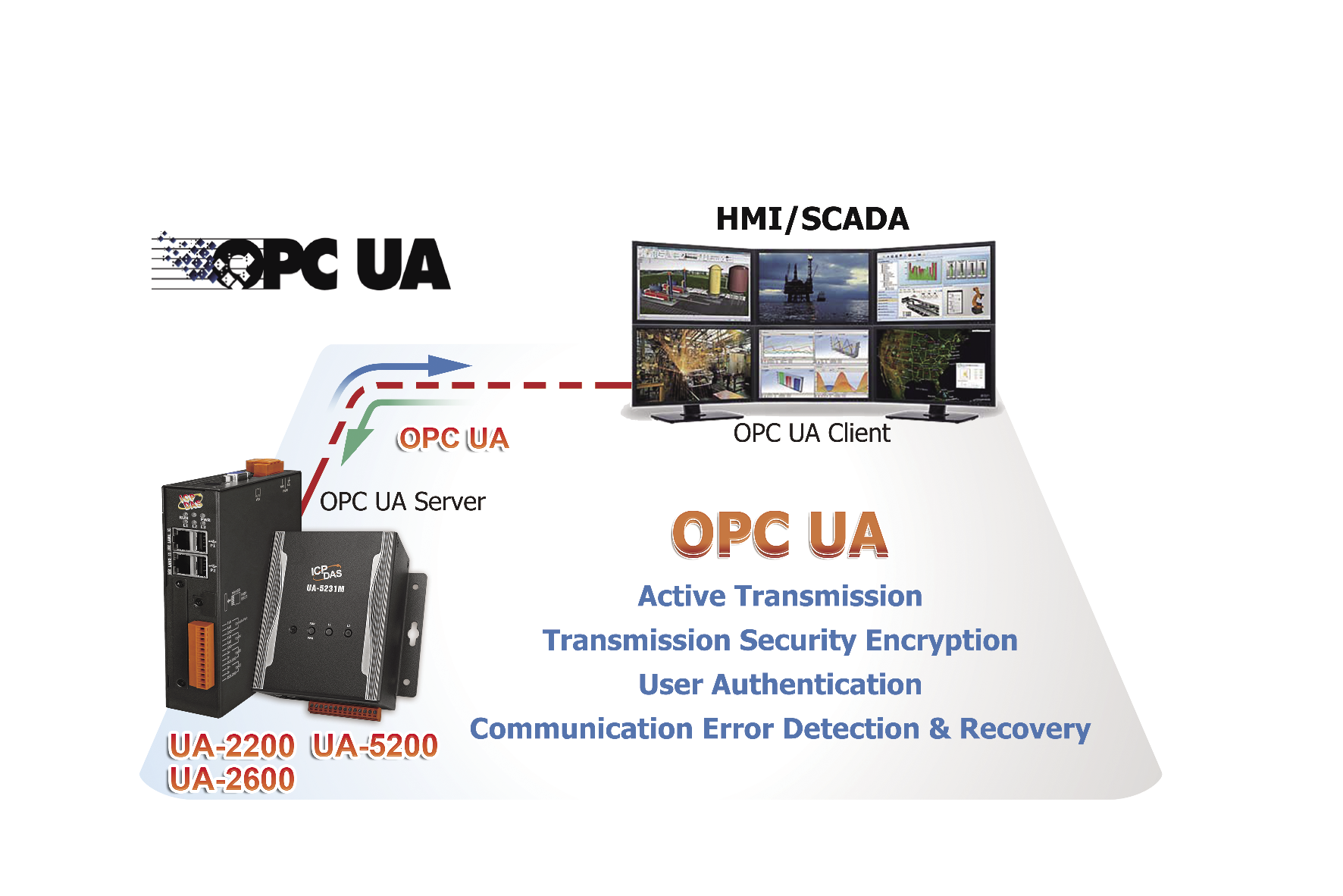

Compliable with IEC 62541 Standard. Provides functions of Active Transmission, Transmission Security Encryption (SSL/TLS), User Authentication (X.509 Certificates/Account password), Communication Error Detection and Recovery, etc. to connect SCADA or OPC UA Clients. Allowed up to 8000 OPC UA tags and up to 20 sessions for the OPC UA Client connection.





  Built-in MQTT Broker Service

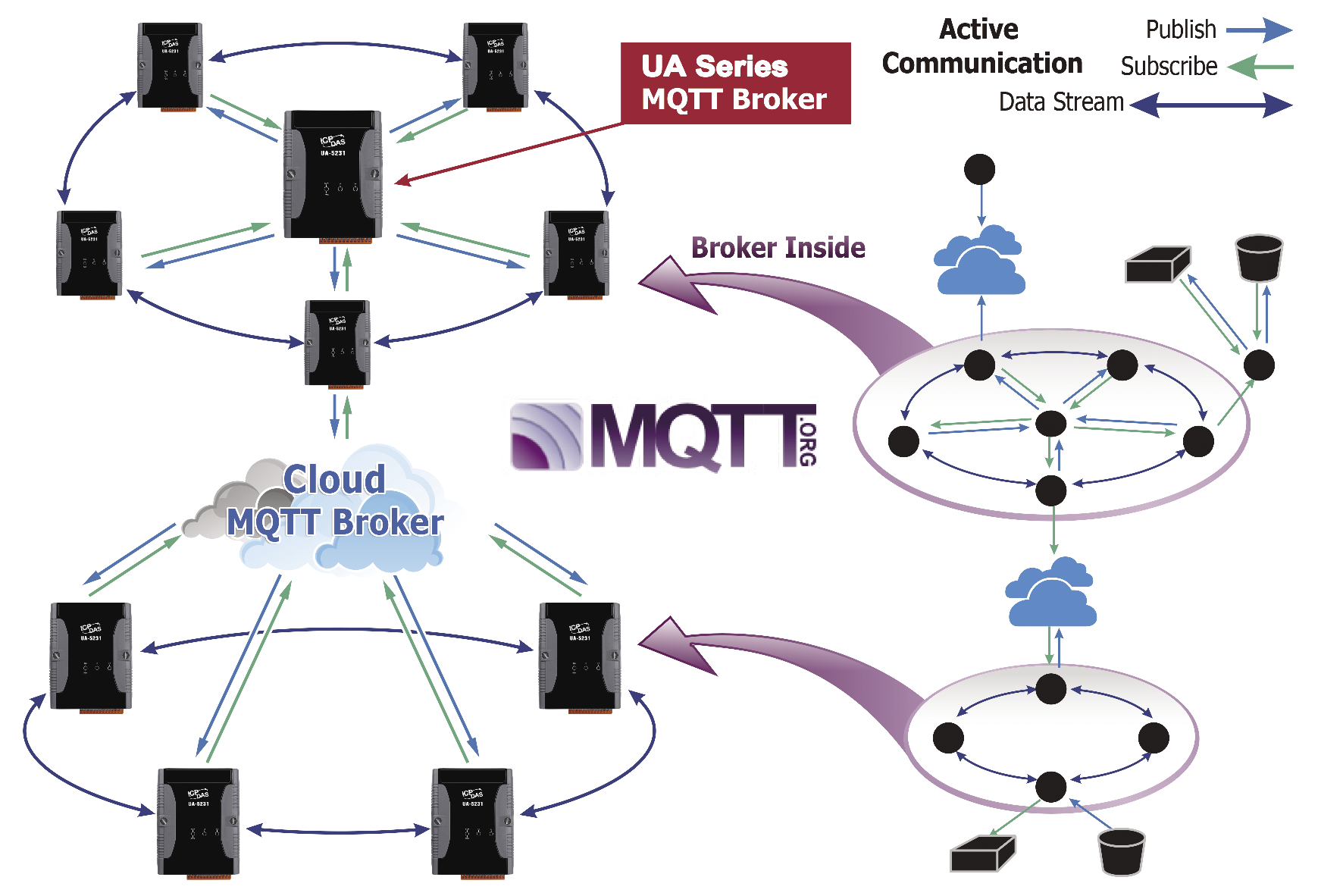

MQTT Broker inside and compliable with MQTT V.3.1.1 protocol. Provides functions of IoT Active M2M Transmission, QoS Quality Service, Retain Mechanism, Identity Verification, Encryption, Last Will, MQTT Client Drivers, etc. The Broker can connect up to 400 MQTT Clients.




TOP | HOME



  Save I/O Data Directly into Remote Database & Local Side LOG File

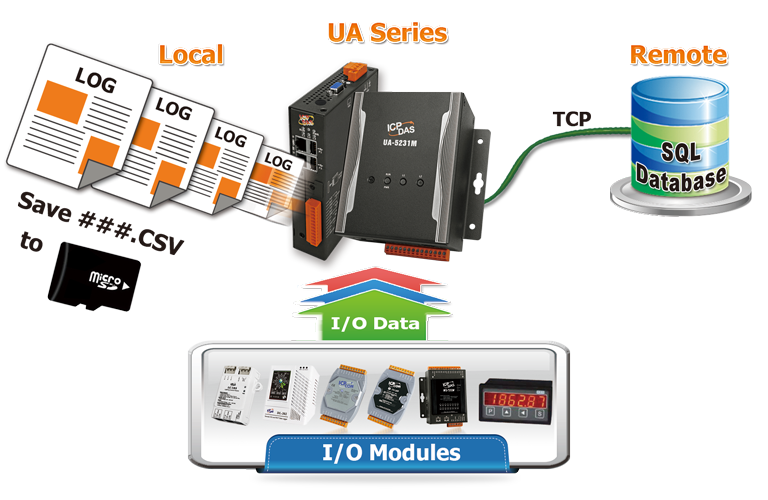

UA series can collect devices I/O status and then directly save into remote side SQL Database. UA series can also save I/O data into a CSV log file on the local side. Furthermore, users can set the time interval of which CSV file to generate and divide on the local side.

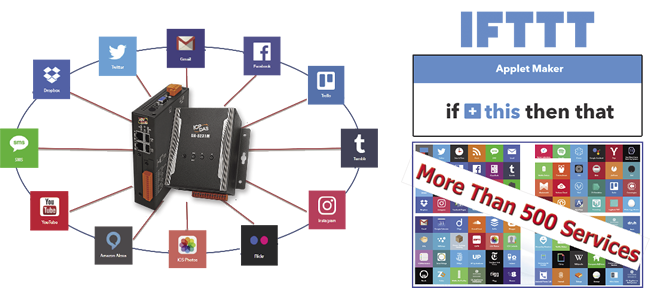

  Support Logic Control IFTTT To Send Event Messages To LINE, FB... APPs

UA can combine the IFTTT cloud platform functions and send messages over 460 Web APPs (such as Line, Facebook, Twitter, etc.) when the special events occur. The device I/O change can be set to trigger the event of the IFTTT cloud service, and the IFTTT logic control (If This, Then That) will immediately let the pre-set Web Service (Such as LINE) send a message to one user or group to handle the event immediately.





TOP | HOME

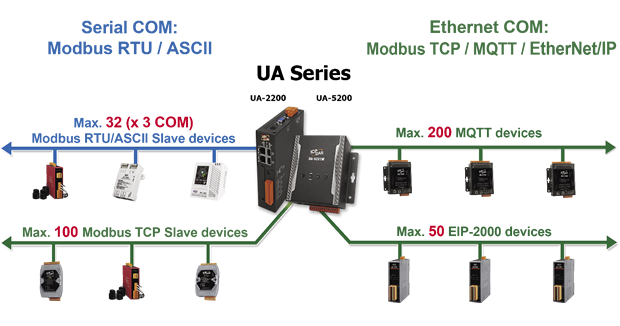

  Support Ethernet and Serial Communication Modules

Under the Ethernet communication, UA supports Modbus TCP, MQTT and ICP DAS EtherNet/IP modules:
  * Up to 100 Modbus TCP Slave module connections
  * Up to 200 MQTT module connections
  * Up to 50 EtherNet/IP EIP-2000 module connections
Under the Serial communication, UA provides 3 RS-232/RS-485 ports to support Modbus RTU/ASCII modules:
  * Up to 32 Modbus RTU/ASCII Slave modules per COM
Through the UA Web UI, users can quickly set up the modules and display the real-time status.




  Provide Function Wizard Web UI for easily step-by-step setup

The Web UI of UA provides a wizard-like Step Box in the Function Wizard area to guide user step by step to complete the project or function. It provides many items for setting the Communication Conversion, Azure Connecting, Local Data Logger, Remote Database, Function Configuration, PID Operation, Condition Trigger the APP Message Notification (Line, Facebook, Twitter) and will be more. It will help users to set projects easily and quickly.








  Support IoT Cloud Platforms Connection

UA can actively connect to Amazon AWS, IBM Bluemix, Microsoft Azure or other IoT Cloud platforms to send over the I/O data.





TOP | HOME






Farm Automation Solution

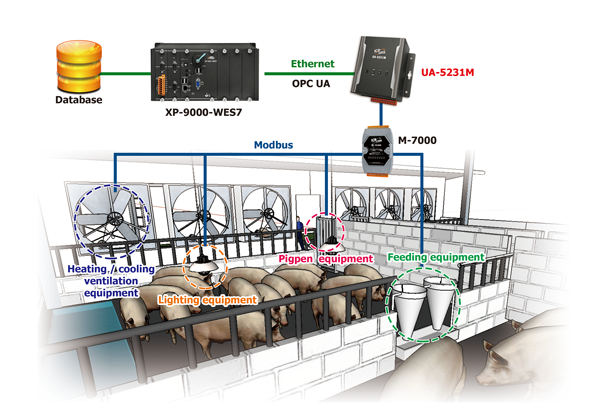

The farm automation solution controls the on-site cooling/heating/ventilation environmental equipment, lighting equipment, feeding equipment, and pigpen equipment through UA-5231M and the connected M-7000 modules. The upper controller XP-9000 manages daily feeding and drinking equipment of every pigpen and integrates the data of the water supply, feed volume and diet to the database, and then analyzes the data and adjusts the application to plan the best breeding solution.

Factory Automatic Solution

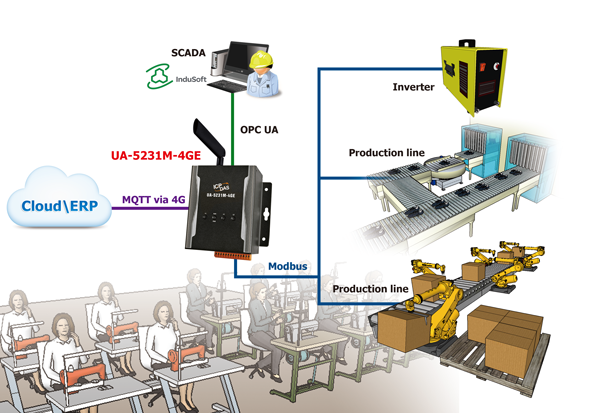

The factory automatic solution uses the UA controller to obtain the information such as the safety status of the production line and the temperature, voltage and current status of the inverter, then transmits them to the SCADA control system for real-time factory management. Besides, the 4G wireless can help to integrate the machine status, temperature, product yield, production parameters, electricity consumption, etc. into the ERP system via the MQTT protocol for managing the production of the global factories.

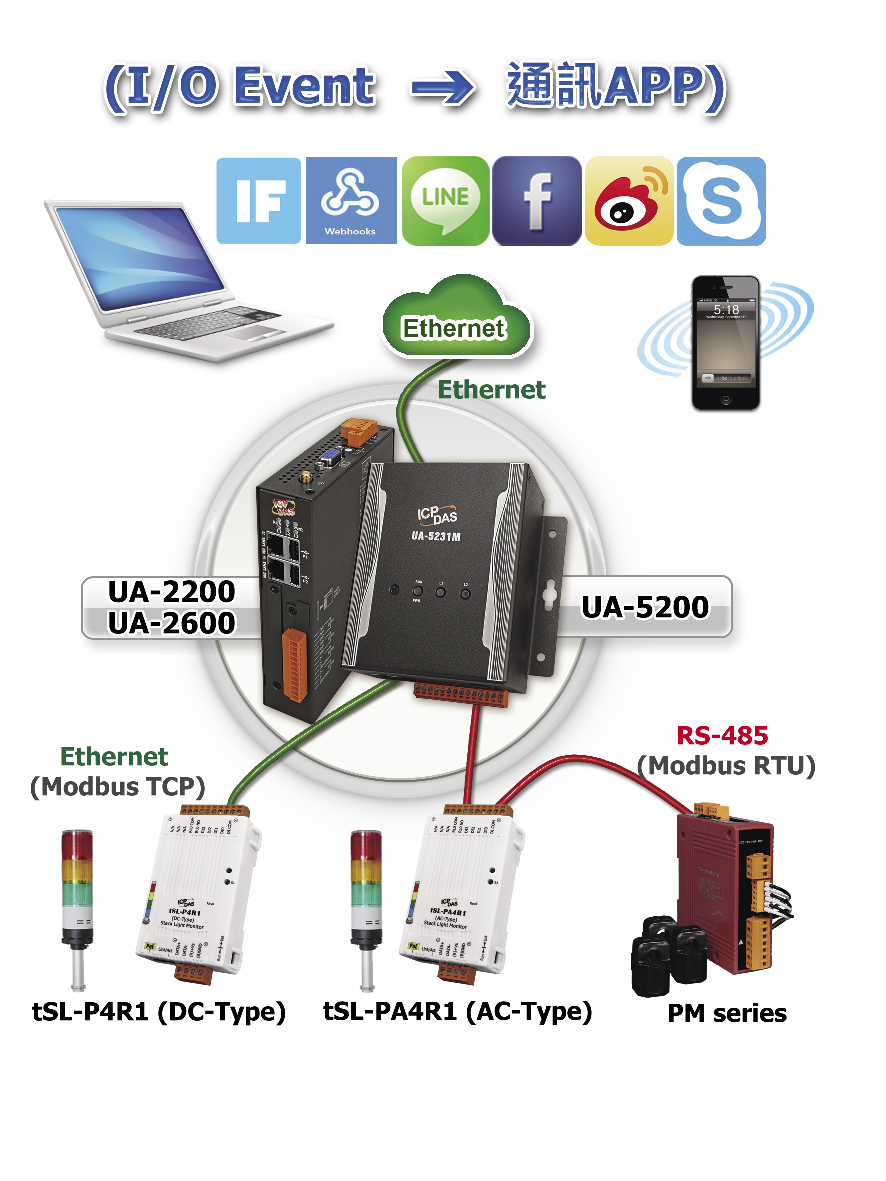

Alert Message Notify LINE Group Application
This security application provides active and non-active signal triggers for buildings, factories, etc. Through the IFTTT platform, it can send the message notification to the user-favorited APPs and instantly master the device information.

Application Features:
• DI or Switch Status Change Notification
• Message to Personal/Group of LINE APP
• More APPs: Facebook, Twitter, Skype, Weibo, etc.

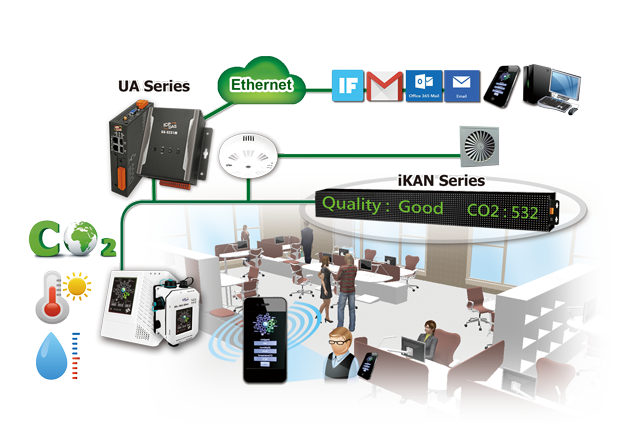

CO2 Concentration Monitoring & Notification Application
This application for indoor air quality management combines with LED displays, fresh air equipment, etc. When the CO2 concentration exceeds the limit, the system will display information on the LED display, force to ventilation, and sends notifications via IFTTT platform to pre-assigned web software, such as Gmail, e-mail, Office 365 Mail, etc.

Application Features:
• Dead Band Boundary Trigger (High: Danger Alert, Low: Safety Notification)
• PC/Mobile Mail Notification (Gmail, e-mail, Office 365 Mail, Dropbox, etc.)

TOP | HOME
IIoT Factory Application of MES
The Manufacturing Execution System (MES) communicates the factory equipments via OPC UA Client, and the OPC UA Service of the UA-5200 series can seamlessly integrate the system and equipments. The MES is the main solution for today's factory system, and the UA-5200 series IIoT Communication Server is the best choice for the IIoT factory solution.

Application Features:
• Convenient for System Integration
• Unified Access Interface

Pumping Station IoT Application
This application is mainly about how to manage the pumping device data from stations. UA-5231 series uploads the data of all pumping stations to the control center and manages/configures with the IWS software. In this case, the UA-5231 shortens the configuring and adjusting time. Without the complicated PC configuration, the UA-5231 directly connect the Modbus and OPC UA Server by completing all configuration easily and efficiently on the web.

Application Features:
• Cross Web Domain
• Security

Robotic Arm Co-operation Application
This application allows two robotic arms interactive communication and coordinated operation through the MQTT, and do the data analysis and system monitor/control with the database of SQL, Big Data or SCADA through the OPC UA.


Application Features:
• Asynchronous Transmission
• Mobile Monitoring

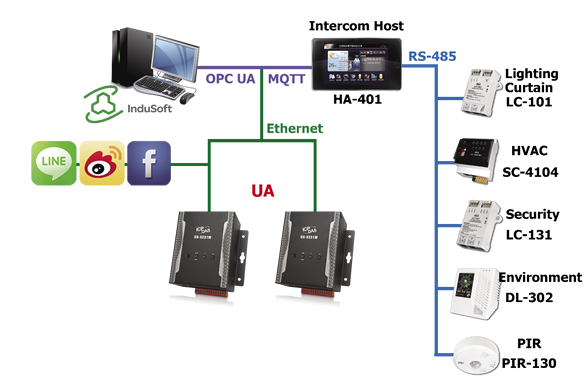

BA Smart Building IoT Application
This IoT application mainly combines the video intercom indoor host HA-401 with the lighting control, air conditioning, security, temperature, humidity, PM2.5, CH4, HCHO, and other harmful substance sensing devices to create a safe and comfortable environment.

If there happens a special situation, UA can quickly trigger the event, send a message to notify the Web APP (ex: LINE, Weibo, Facebook, Twitter, etc.). The dual UA architecture can reduce the system burden.

Application Features:
• Reduce System Burden
• APP Message Notify



TOP | HOME





  Solution 1   Solution 2



  Solution 3   Solution 4



  Solution 5   Solution 6



  Solution 7   Solution 8



TOP | HOME
