- New Product Release: AR-200/AR-400 (Accelerometer Data Logger)
Mar. 29, 2018 -

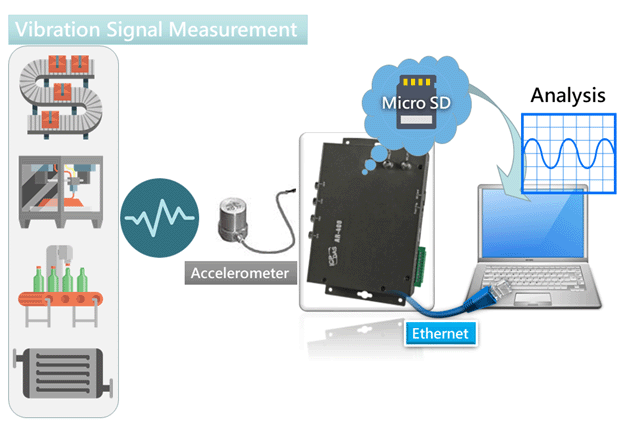

In recent years, in the trend of rapid growing in intelligent factory, automatic, unmanned, and intelligent equipment would be the main trend in the future. The vibration detection of equipment could prevent the loss caused by the damage of equipment. The factory manager could perform maintenance and repair before the equipment being out of order due to lacking of maintenance in time. And it prevent large scale malfunction of the equipment which may by decrease the production efficiency.
IEPE acceleration sensor in current market is often used in detection of vibration signal in station bearing, and it usually needs to install extra driver module. In this way, the cost is increase and may cause uncertain results in measurement. In addition, the sampling range of acceleration recorder in current market usually could not meet the standard to detect certain range of vibration for station bearing. In order to solve the above problem and to achieve best performance, ICP DAS has developed Accelerometer Data Logger, AR-200/AR-400. - Features:
- 2 or 4 simultaneous, 16-bit resolution ADC
- Support 2 or 4 IEPE input,and built-in 3 mA excitation current
- AR-200 support sample rate: 200kHz,100kHz and 50kHz
- AR-400 support sample rate: 125kHz, 100kHz and 50kHz
- Max. Recording time: 120 seconds
- Dynamic range: +/- 10V
- Flexible trigger modes: Push button trigger, Schedule trigger, analog threshold trigger, digital input trigger and utility remote trigger
- Supports 4 to 32 GB micro SDHC type flash
- Provide 2-ch DI and 1-ch Relay
- Provide LED indicators
- Contains LED indicator on RJ-45 for Ethernet status.
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to +75°C).
- RoHS design
- Utility:
- Provide device search function.
- Support trigger mode configuration
- Support RTC calibration
- Provide recording file(*.ar) convert to various file type (*.xls, *.csv, *.txt)
- Support utility remote trigger mode
- Show system event log
- Specifications:
Module AR-200 AR-400 Analog Input Interface Channels 2 (simultaneous sampling) 4 (simultaneous sampling) ADC Resolution 16 bit Sample rate (kHz) 50, 100, 200 50, 100, 125 Dynamic range +/- 10V IEPE 3 mA Trigger mode Push button trigger, Schedule trigger, Analog threshold trigger, Digital input trigger and Utility Remote trigger Connector BNC Digital Input Interface Channels 2, Dry Contact: Source x 1, Wet Contact: Sink or Source x 1 Dry Contact Level Off Voltage Level: Open, On Voltage Level : Close to GND Wet Contact Level Off Voltage Level: +4 VDC max., On Voltage Level: +10 VDC to +50 VDC Digital Output Interface Channels 1, Power Relay, Form A x 1 Contact Rating AC: 125 V@0.6 A DC: 30 V@2 A, 110 V@0.6 A Ethernet Interface Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) Connector RJ-45 with LED indicator SD Card Interface Storage Media Micro SDHC type flash – support 4 to 32 GB Recording Format Binary LED Indicator LED indicator PWR LED, DAQ LED, SD LED Power Power supply Unregulated +10 to +30 VDC Protection Power reverse polarity protection, Over-voltage brown-out protection Power Consumption 4.3 W Mechanical Installation Wall Mount Dimensions 197 mm x 139 mm x 57 mm (W x L x H) Environment Operating Temp. -25 to 75 ℃ Storage Temp. -30 to 80 ℃ Humidity 10 to 90% RH, non-condensing - Ordering Information:
AR-200 CR 2-Channels Accelerometer Data Logger device (RoHS) AR-400 CR 4-Channels Accelerometer Data Logger device (RoHS)
Datasheet Download:
http://www.icpdas.com/root/product/solutions/datasheet/ar-series/AR-X00.pdf
For more information, please refer to:
http://www.icpdas.com/root/product/solutions/remote_io/ar_series/ar-x00.html
