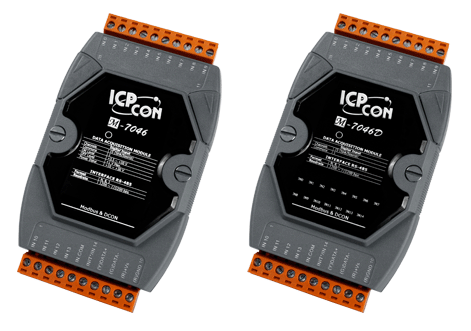

- New Product Release: M-7046/M-7046D
15-channel Isolated Digital Input Module
Feb. 09, 2018 -
Introduction:The M-7046 is a 15-channel Digital Input module. Each channel features photocoupler isolation and can be used as a 16-bit counter. In addition, the Digital Input type can be selected as either sink or source via wire connections. The M-7046D module includes 15 LED indicators that can be used to monitor the status of the DI channels. 8 kV ESD protection and 5000 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments, making the M-7046(D) module an ideal solution for Digital Input applications.
- Features:
- Sink- or Source-type Digital Input
- Photocoupler Isolation
- All Channels can be used as 16-bit Counters
- ±8 kV ESD Protection
- ±4 kV EFT Protection
- ±3 kV Surge Protection
- 5000 VDC Isolation Voltage
- Dual Watchdog
- Wide Operating Temperature Range: -25 to +75°C
- Applications:
- All Types of On/Off Control
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor Fabrication
- Control Systems
- For more details, please visit:
http://www.icpdas.com/root/product/solutions/remote_io/rs-485/i-7000_m-7000/m-7046.html
