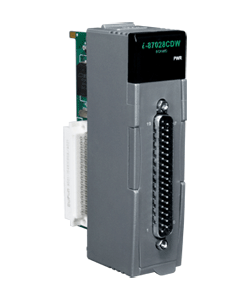

- New Product Release: I-87028CDW
8-channel Isolated Analog Output Module
Jan. 16, 2018 - Introduction:
The I-87028CDW is an 8-channel current output module that features 3 kVDC channel-to-channel isolation and also features per-channel open wire detection for 4 to 20 mA outputs, together with 4 kV ESD protection as well as 3 kVDC intra-module isolation. Options for configuring power-on and safe values are also included. - Features:
- 3 kV Intra-module Isolation
- 3 kV Channel-to-Channel Isolation
- Open Wire Detection for Current Output
- Power-on Value Setting
- Safe Value Setting
- 4 kV ESD Protection
- Wide Operating Temperature Range: -25 to +75°C
- Applications:
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
- For more information, refer to:
http://www.icpdas.com/root/product/solutions/remote_io/rs-485/i-8k_i-87k/i-87028cdw.html
