- New Product Release: ET-8KP8-MTCP
Modbus TCP I/O expansion unit
Jan. 16, 2018 -

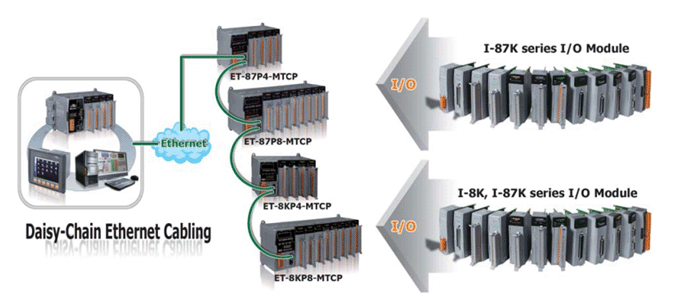

ET-8KP8-MTCP series is a Modbus TCP I/O expansion unit to expand I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports for daisy-chain topology. The daisy-chain feature allows ET-87Pn to connect in series to each other or other Ethernet devices. It also simplifies the wiring and saves the installation space.
- Specification:ModelsET-8KP8-MTCP
Communication Ports Protocol Modbus TCP SlaveModbus RTU/ASCII SlaveModbus TCP to RTU GatewayEthernet RJ-45 x 2, 10/100 Base-TX (Auto negotiating, Auto MDI/MDI-X, LED indicators)COM 1 RS-232 (to update firmware) (RxD, TxD and GND); non-isolatedSMMI LED Display Yes, 5-Digit LED DisplayPush Buttons 4I/O Expansion Slots Slot Number 8For High Profi I-87K/I-8K ModulesHot Swap NoMechanical Dimensions (W x L x H) 312 mm x 132 mm x 111 mmEnvironmental Operating Temperature -25 to +75 °CStorage Temperature -30 to +75 °CAmbient Relative Humidity 10 to 90% RH (non-condensing)Power Input Range +10 ~ +30 VDCIsolation 1 kVRedundant Power Inputs YesCapacity 30 WConsumption 2.4 W - For more information, please visit the link below:
http://www.icpdas.com/root/product/solutions/pac/ipac/et-87pn-mtcp.html
