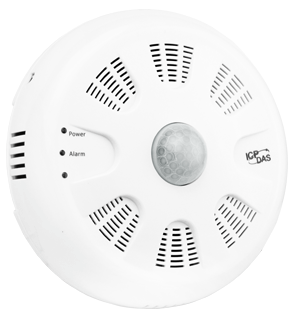

New Product Release: PIR-230-E
PIR, Temperature and Humidity Sensor Module
Feb. 20, 2017 - Introduction:PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or can be configured to activate a fire alarm. The modules support both the DCON and the Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel. The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that they are easy to match with interior decoration.
- Features:
- Adjustable Time Delay/Lux./Sensitivity
- Internal Photosensor for Smart Switch-on Control
- LED Indicator for PIR/Temperature Sensor
- Temperature Sensor for Measuring Room Temperature
- Suitable as either Temperature or Fire Alarm
- Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
- Suitable for loads up to 1500 W (Incandescent) and 300W (Fluorescent)
- Wide range of Communication Interfaces and Protocols
- Ceiling or Surface-Mount Design
- Applications:
- Lighting and exhaust fans in public toilets
- Lighting in parking areas
- Common lighting in staircases
- Garden lights
- Lighting for changing rooms in shops
- Corridor lighting, and many more situations
-
ModelDescription
PIR-230-E PIR Motion Sensor, Temperature and Humidity Sensor Module (Ethernet)
For more information, refer to: http://www.icpdas.com/root/product/solutions/remote_io/rs-485/sensor_series/pir-230.html
