New Product: PROFI-2542-SC
PROFIBUS to Single mode Fiber Optic Converter -
PROFIBUS is an open, digital communication system with a wide range of applications, particularly in the fields of factory and process automation. PROFIBUS is suitable for both fast, time-critical applications and complex communication tasks.

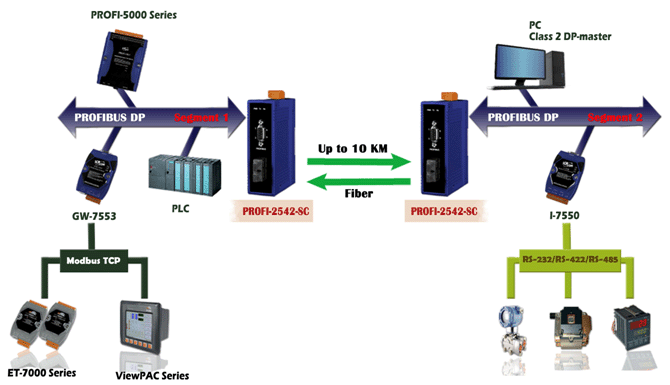

The PROFI-2542-SC is one of the PROFIBUS DP series products produced by ICP DAS. It supports transmission rate of 9.6Kbps to 12Mbps and detects the rate automatically. The PROFI-2542-SC provides ±4KV ESD protection contact for all terminals. By PROFI-2542-SC, users can secure PROFIBUS data transmission via single mode fiber optic which provides immunity from EMI/RFI interference. In general, it can be used in the application of building automation, remote data acquisition, environment control, environment monitoring, applications in laboratory equipment & research, and factory automation, etc. - PROFIBUS Signal Quality:Users can set dip switch to get a better PROFIBUS signal quality in PROFI-2542-SC module.
- Features:
Protocol PROFIBUS DP Supports Transmission Rate (bps) 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M Transmission Rate Setting detected automatically Indicators PWR LED and TxD LED, RxD LED Network Isolation Protection High Speed iCoupler DC Isolation Protection 3000 VDC on PROFIBUS side ESD Protection ±4KV - Specifications:Model NameNEW
PROFI-2541NEW
PROFI-2541-SCNEW
PROFI-2542-SCPictures PROFIBUS Channel 1PROFIBUS Baud Rate (bps) 9.6 K ~ 3 M9.6 K ~ 12 MPROFIBUS Protocol DP-V0/DP-V1/DP-V2PROFIBUS Transmission Distance (m) 9.6K ~ 93.75K187.5K500K1.5M3M,6M,12M12001000400200100Fiber Channel 1Fiber Connector ST(Multi-mode)SC(Multi-mode)SC(Single-mode)Fiber Transmission Distance 1.4 KM max. (in 62.5/125 μm fiber cable)10KM max.
(in 9/125 μm fiber cable) - Ordering Information
PROFI-2542-SC CR PROFIBUS to Single mode Fiber Converter(SC Type) (RoHS) - Datasheet Download:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/datasheet/English/profibus/PROFI-2542-SC.pdf
For more information, please refer to:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/profibus/repeater/profi-2542-sc.html
