New Product: PFN-2024 (PROFINET I/O Module, 4-ch AO)
- PROFINET is an open Industrial Ethernet standard developed by the PROFIBUS Organization (PI). Based on the versatility of Ethernet, PROFINET makes vertical integration of field level to Enterprise level easily. PROFINET has good performance in real-time and stability for communication, so it can cover all requirements of the Automation Industry. PROFINET is perfect for factory automation, process automation, safety applications and motion control applications, etc.

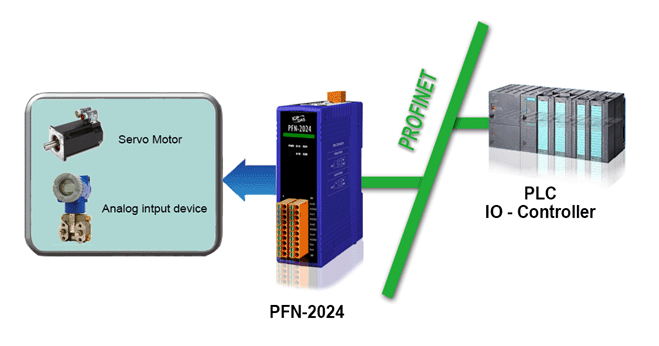

The PFN-2024 is one of the PROFINET I/O series products produced by ICP DAS. It has 4-channel isolated analog output with voltage and current types. It provides safe value setting for each channel. By applying the PFN-2024, users can easily establish a PROFINET network with other PROFINET IO Controllers. -
Features:
- Protocol: PROFINET IO Device
- Supported Ethernet services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
- Supported PROFINET services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided
- Integrated 2-port Ethernet Switch for Daisy-Chain Topology
- Automatic MDI / MDI-X Crossover for Plug-and-play
- Output Range: 0 to 20mA, 4 to 20mA, 0 to 10V, ±10V, 0 to5V, ±5V
- Individual Channel Configuration
- Safe Value Setting
- Provide LED indicators
- Robust, fan less design
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to +70°C)
-

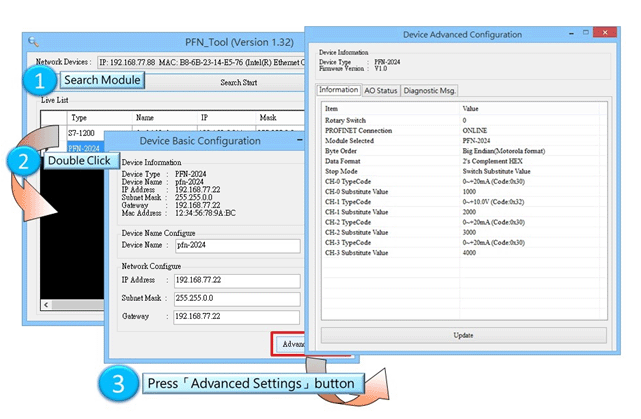

Utility:
- Provide device search function
- Show firmware version
- Support network parameters configuration
- Show module parameters of the PFN-2024
- Provide Analog Output test function
- PROFINET I/O Products Comparison TableModule NamePFN-2042
~NEW~PFN-2051
~NEW~PFN-2052
~NEW~PFN-2053
~NEW~PFN-2055
~NEW~PFN-2060
~NEW~I/O Type16 x DO16 x DI8 x DI16 x DI8 x DI,
8 x DO6 x DI,
6 x RelayDigital InputContactDry + WetWetDryDry + WetDry + WetSink/SourceSink/SourceSink/SourceSourceSink/SourceSink/SourceDigital OutputTypeOpen CollectorOpen CollectorPower RelaySink/SourceSinkSinkForm AModule NamePFN-2019
~NEW~PFN-2024
~NEW~I/O Type10 x AI4 x AOAnalog InputSensor TypeThermocouple (J, K, T, E, R, S, B, N, C)Voltage Input Range±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±5V, ±10VCurrent Input Range±20mA, 0~+20mA, +4mA~+20mA (Required External 125Ω Resistor)Resolution16-bitSample Rate10 HzAccuracy±0.1% of FSRAnalog OutputOutput Range0~20mA, 4~20mA, 0~10V, ±10V, 0~5V, ±5VResolution16-bitAccuracy±0.1% of FSROutput CapacityVoltage: 500Ω; Current: 750ΩIsolation1500 VDC - Datasheet Download:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/datasheet/English/profinet/PFN-2024.pdf
For more information, please refer to:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/profinet/io_module/pfn-2024.html
Related Product
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/profinet/profinet_selection_guide.html - Ordering Information
PFN-2024 CR PROFINET I/O Module (4-channel Isolated Analog Output Module) (RoHS)
