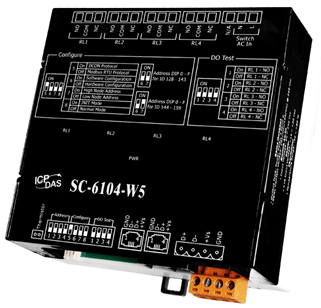

New Product Release: SC-6104-W5
Multifunctional smart controller with 1 channel AC digital input, 4 channels relay output, 1 channel thermistor sensor and support DCON & Modbus RTU protocols - SC-6104-W5 is an easy-to-use smart control module. It can be used in FCU control system and lighting control system, etc.. SC-6104-W5 requires no specialist skill to install and operate, and no software is needed to control the DO channels.
The SC-6104-W5 provides 1 channel for AC digital input (photo couple isolation), 1 channel for temperature detector, 4 channels for Form C relay output. The input channel can directly control the 4-channel relay ON and OFF sequence without requiring a remote host controller. It provides up to 7 kinds relay output sequence options for users to select from. Every output channel can support up to 500W power consumption device. When required, user can control these relay output and monitor DI and temperature by communicate with the SC-6104-W5 via Modbus RTU or DCON protocol. And an added benefit is that the addresses can be modified via hardware configuration. - SC-6104-W5 has ±4 kV ESD protection for each terminal and 5000 Vrms intra-module isolation for DI. And the Shell uses fireproof materials. The high protection design ensures reliability.
-
Features:
- Cost-effective for Lighting control and FCU control module
- Power Relay Outputs
- Isolated AC Digital Input
- Support 7 kinds AC DI Input Direct Control Relay ON/OFF Functions
- 1 Channel Thermistor Temperature Sensor (-40°C to +80°C)
- Easy installation
- Use fireproof materials (UL94-V0 Level)
- Low power consumption
- Support Modbus RTU and DCON Protocol
- Two RJ-11 Connector (6P4C or 6P6C), Quick and easy wiring
-

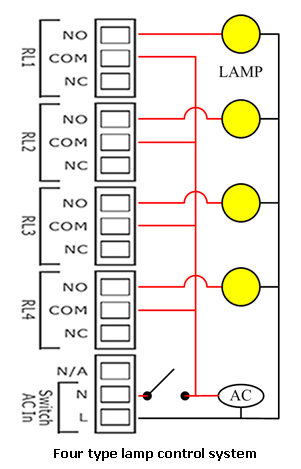

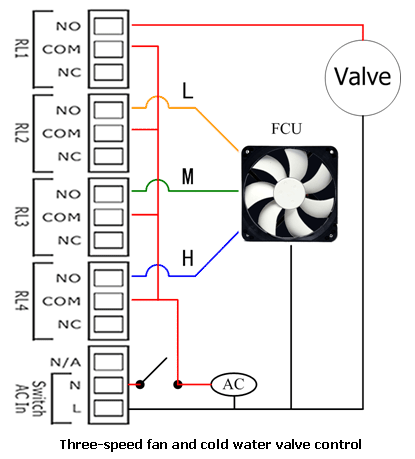

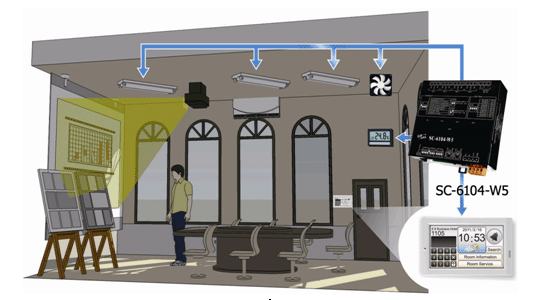

Application:
- For more detailed information please refer to the website below: http://www.icpdas.com/root/product/solutions/remote_io/rs-485/smart_control/sc-6104-w5.html
