New Product: EIP-2042
Isolated 16-ch DO EtherNet/IP module - The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

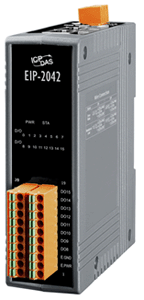

The EIP-2042 is a remote digital output module with 16 outputs. It is designed as an EtherNet/IP adapter. Users can obtain the output status as well as the connection status of the EIP-2042 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet. - Features:
- Transfer protocol: EtherNet/IP
- 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
- Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
- Easy firmware update via Ethernet
- Removable terminal block connector
- LED indicators to display the I/O status
- Built-in I/O
□ DO: 16 Channels - Power-On Value
- Safe Value
- RoHS compliant

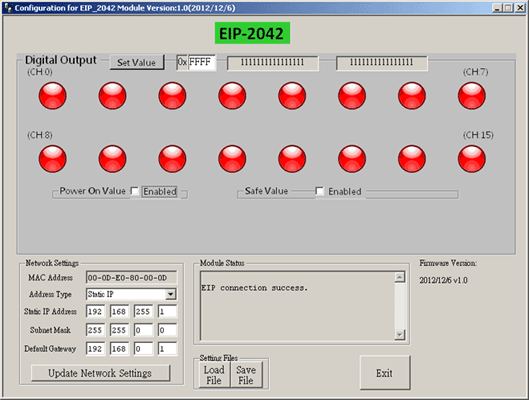

- Utility Features:
- Supports Windows 2K/XP/Vista and Win 7
- Network parameters configuration
- Settings for power-on value and safe value
- Easy test to transmit/receive the I/O status by EtherNet/IP
- Setting files management
-
Comparative List:
Products EIP-2055EIP-2060EIP-2042EIP-2051Digital Output Output channel 8DO6Relay (FormA)16DON/AContact Rating N/A5 A@30 VDC
5 A@125 VACN/AN/ALoad Voltage +3.5 ~ 50 VDCN/A+3.5 ~ 50 VDCN/AMax Load Current 700 mA/chN/A700 mA/chN/AOvervoltage Protection 60 VDCN/A60 VDCN/ADigital Input Input Channel 8DI6DIN/A16DIOn Voltage Level +10 ~ 50 VDC+10 ~ 50 VDCN/A+10 ~ 50 VDCOff Voltage Level +4 VDC Max.+4 VDC Max.N/A+4 VDC Max.DI Counters 32 bits/ch32 bits/chN/A32 bits/ch - EIP-2042 Datasheet: http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/EIP-2042.pdf
For more details, please visit:http://www.icpdas.com/products/Remote_IO/can_bus/EIP-2042.htm -
Ordering Information:
EIP-2042 CR Isolated 16-ch DO EtherNet/IP Module (RoHS)
