- New Product Release : I-7547 (Ethernet to HART Converter)

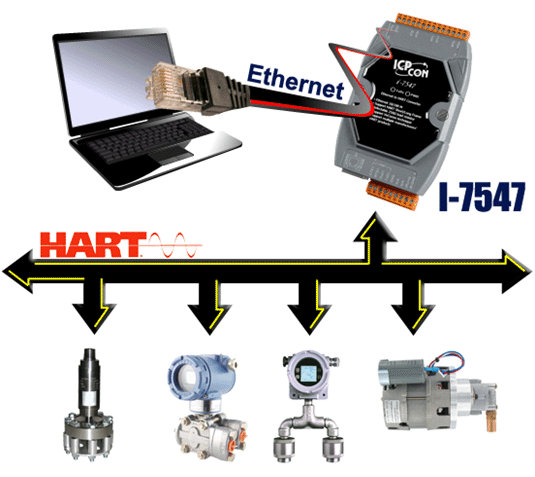

- I-7547 is an Ethernet to HART converter specially designed as the master device of HART protocol. When connecting I-7547 to PC via Ethernet and install the VxComm utility, it will allow users to access the HART devices via virtual COM-port of PC. Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7547. The application fields can be HART bus monitoring, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, Petrochemical Industry Application, etc. In addition, we also provide the free HC_Tool utility for module configuration and HART communication test easily.
- Features:
- Support HART Short/Long frame
- Support HART Burst mode
- Support point-to-point or multi-drop HART mode
- Support connecting up to 15 HART slave devices
- Allow two HART masters
- Provide HC_Tool utility for module configuration and HART communication
- Support firmware update via Ethernet
- Provide PWR / TxRx indication LED
- 4KV ESD Protection
- Built-in Watchdog
- Selectable 250Ω load resistor
- Provide four HART channels
- Support VxComm technique
- Built-In Web Server for network setting

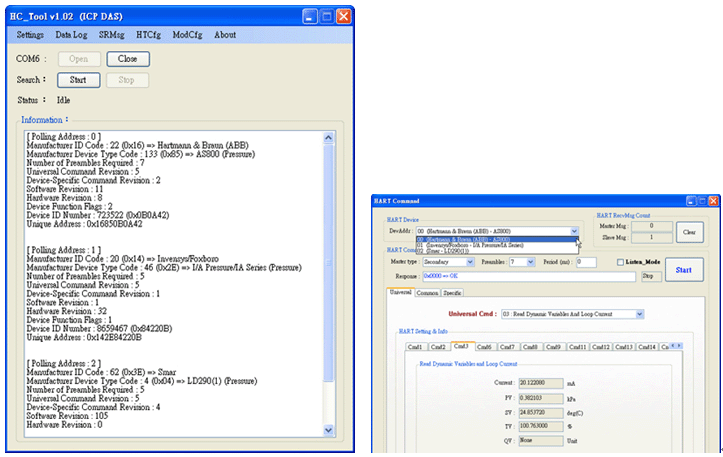

- Utility Features :
- Search all HART devices automatically.
- Provide HART Universal & Common-Practice command (v6.0) for HART device configuration.
- Provide module configuration and HART communication easily and quickly.
- Provide data logging for HART communication.
- HART Products Table :
Module Type ConverterGatewayAnalog I/OModule Name I-7567
(USB to HART)I-7570
(Serial to HART)I-7547
(Ethernet to HART)HRT-710
(Modbus/HART Gateway)GW-7557
(PROFIBUS/HART Gateway)I-87H17W
(HART AI)I-87H24W
(HART AO)Pictures Master Comm. Interface USB
RS-232
RS-422
RS-485Ethernet
RS-232
RS-422
RS-485RS-232
RS-485
RS-485
HART Channel 1
1
4
1
4
8
4
Intra-module Isolation, Field to Logic 3000 VDC
3000 VDC
500 VDC
3000 VDC
3000 VDC
3000 VDC
3000 VDC
Master Comm. Protocol HART
HART
HART
MB/RTU
MB/ASCIIDP-V0
DCON
DCON
Driver Win2K/XP
Win7(32/64bit)None
VxComm
None
None
None
None
Power Supply USB
10 ~ 30 VDC
10 ~ 30 VDC
10 ~ 30 VDC
10 ~ 30 VDC
10 ~ 30 VDC
10 ~ 30 VDC
250Ω Resistor By Jumper
By Jumper
By Jumper
By Jumper
By Jumper
Built-in
Built-in
Free Tool HC_Tool
HC_Tool
HC_Tool
HG_Tool
PH_Tool
API / Demo
API / Demo
- I-7547 Datasheet :
http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/I-7547.pdf
For more information, please visit the following website: http://www.icpdas.com/products/Remote_IO/can_bus/i-7547.htm
