- New Product: PFN-2042 (PROFINET I/O Module, 16-ch DO)
- PROFINET is an open Industrial Ethernet standard developed by the PROFIBUS Organization (PI). Based on the versatility of Ethernet, PROFINET makes vertical integration of field level to Enterprise level easily. PROFINET has good performance in real-time and stability for communication, so it can cover all requirements of the Automation Industry. PROFINET is fit for factory automation, process automation, safety applications and motion control applications, etc.

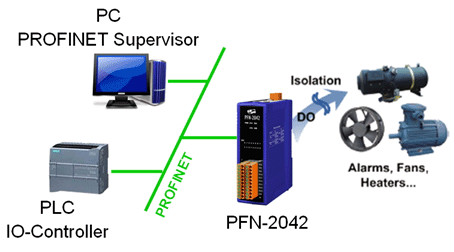

The PFN-2042 is one of the PROFINET I/O series products produced by ICP DAS in 16-channel isolated digital outputs. The PFN-2042 provides ±4KV ESD protection contacting for all terminals (include I/O Terminals and PROFINET connector). By applying the PFN-2042, users can easily establish a PROFINET network with other PROFINET IO Controllers. - Features:
- Protocol: PROFINET IO Device
- Supported Ethernet services: ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
- Supported PROFINET services: RTC, RTA, CL-RPC, DCP, LLDP, I&M
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided
- Integrated 2-Port Switch
- Automatic MDI / MDI-X Crossover for Plug-and-play
- Do load voltage: +3.5 ~ +50 VDC
- Do load current: 700 mA/channel max.
- Provide short-circuit protection on DO channels
- Provide LED indicators
- Robust, fan less design
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
-
Utility:
- Provide device search function
- Show firmware version
- Support network parameters configuration
- Settings for power-on value and safe value
- PROFINET I/O Products Comparison Table
- Datasheet Download:
http://www.icpdas.com/products/Industrial/profibus/datasheet/PFN-2042.pdf
For more information, please refer to
http://www.icpdas.com/products/Industrial/profibus/pfn-2042.htm
Related Product:
http://www.icpdas.com/products/Industrial/profibus/profinet_intro.htm - Ordering Information
PFN-2042 CR PROFINET I/O Module (Isolated 16-ch DO) (RoHS)
