The integrated CAN API library for the CAN series converters and PCI boards: the VxCAN APIs.
Provides common APIs for all CAN interface devices of ICP DAS.
-
Nowadays, CAN-based applications have demonstrated high degree of security and stability. More and more researches and developments of CAN-based devices have been published from the automotive and industrial domains. The virtual CAN driver of ICP DAS is helpful to shorten the system development schedule when developing new applications or porting applications to different-interface CAN devices. It is an integrated library and provides common APIs for all CAN converters and CAN PCI boards. When developing the CAN applications, the users are able to just use the same APIs to apply various interfaces CAN products of ICP DAS.

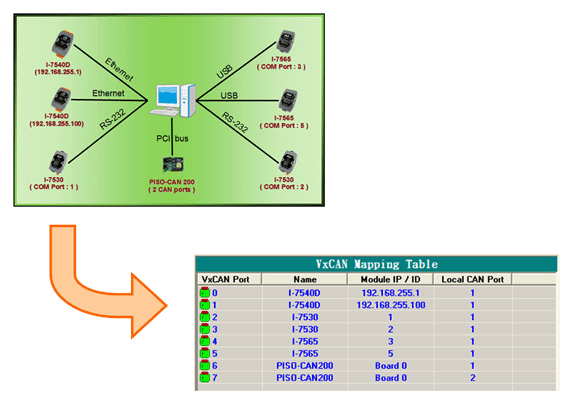

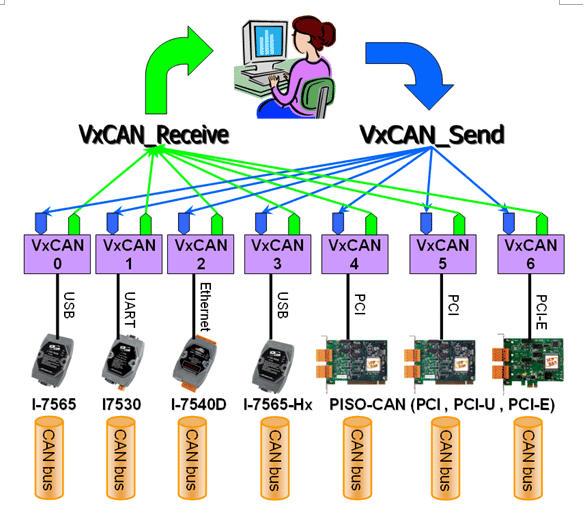

After applying the virtual CAN driver, all of the CAN products connected with the PC will be regarded as the virtual CAN bus ports of the PC. The virtual CAN driver arranges these CAN devices the corresponding virtual CAN ports with unique sequence numbers, which are called virtual CAN port numbers. Users only need to know the mapping table of the CAN devices and virtual CAN ports. The operation of the CAN devices becomes more easy and simple.
-
-

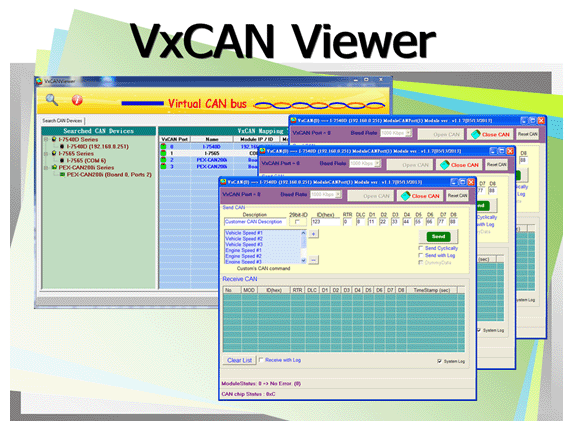

By owing to the free graphical tool (VxCAN Viewer), users can easily manage and integrate with CAN converters and CAN PCI boards. VxCAN Viewer provides various functionalities for CAN network diagnosis. When planning or developing CAN applications, VxCAN Viewer would help users to monitor and access the CAN bus and test the CAN devices.
-
Features:
-
- OS environment: Windows XP / Win 7 32-bit / Win 7 64-bit
- Provides “VxCAN Viewer” to diagnose the CAN devices.
- Intergrades different CAN converters and CAN PCI .boards.
- Common APIs for all CAN converters and CAN PCI boards.
- Provides the mapping table between the CAN devices and the virtual CAN ports.
- Offers the APIs to search the CAN products within the PC.
- VC6 / C#.NET Demos for the APIs of the virtual CAN driver.
-
Supported Product List:
