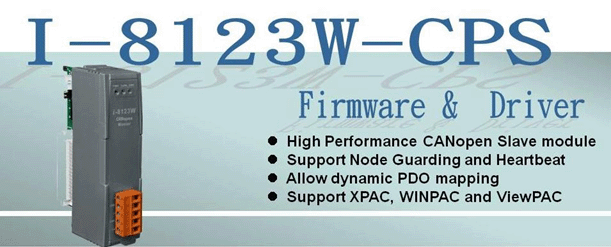

- New Product: I-8123W-CPS
1port high performance CANopen slave module - ICP DAS has developed the I-8123W-CPS, a high performance CANopen slave module. As standalone CAN controller, I-8123W-CPS can represent an economic solution of CANopen application and be a CANopen slave device on the CANopen network. It can be installed in WinPACs, ViewPACs and XPACs series now. It is popularly applied in the industrial automation, building automation, vehicle, embedded control network and etc.
- Features:
-
- One CANopen slave communication port
- Standard CANopen specification DS-301 v4.02
- Support node id 1~127
- Programmable bauds: 10k, 20k,50k, 125k, 250k, 500k, 800k and 1M bps
- Support both Node Guarding Protocol and Heartbeat Protocol
- Provide event trigger function for EMCY event, Node Guarding event and Heartbeat event
- Provide Event-trigged, remote-requested, cyclic and acyclic SYNC of PDO mode
- The PDO communication supports single byte output so that users can just modify the value of one byte without changing the others
- Allow dynamic PDO mapping
- The SDO communication supports segment protocol
- Programmable slave node ID for the CANopen slave function.
- Provide eVC++, VB.Net and C# demos.
- Support WP-8xx1, VP-25W1 and XP-8xx1-CE6 PACs
- 256 records CANopen message receive buffer size
- 2500 Vrms photo-isolation protection on CAN side
- 3 indication LEDs (PWR, Rx/Tx, ERR LEDs)
- For more information about the I-8123W-CPS, please visit the following website.
http://www.icpdas.com/products/Remote_IO/can_bus/i-8123w-cps.htm
