New ISaGRAF Application: Air Pollution Monitoring and Alarm System
- Introduction:
- With a highly developed industry and the increased use of fossil energy, the quality of human life has been changed. The exhaust from the industrial parks have been verified containing many pollutants such as suspended particulates (PM10), carbon monoxide (CO), carbon dioxide (CO2), sulfur dioxide (SO2), nitrogen dioxide (NO2), ozone (O3), etc.
The World Health Organization (WHO) has shown that air pollutants can be harmful to the human body, such as heart disease, respiratory system disease, children's mental retardation, decline in human fertility, or even chronic diseases cause cancers.
Air pollution not only threatens the health of human beings but also increases the social burden on medical resources and disturbs the ecological balance. Humans should start to reconsider – what kinds of an advanced civilization do we need? Whether back to the essence of human life during the process of pursuing industry evolution? Only the healthy living environment ensures the guaranty of sustainable evolution. Today, energy conservation & carbon reduction, renewable energy and green living are the important environment protecting issues. As the citizen of the world, ICP DAS has been involving in all-round research on these topics and launching a variety of green technology solutions that applies to each industry to fulfil the goal of sustainable operation. - System Description:
- For the purpose of preventing exhaust pollution effectively, we will introduce an “Air pollution monitoring and alarm system” solution, so that the on-site operator can take immediate and effective measures when the pollutant reading is over the limited value, and to make sure the quality of working environment and people's health.
For high quality air monitoring system need, the system uses the I-87017RCW to monitor the air pollutant concentration and provides 24-hour monitor and then record the data every 30 seconds to a daily file. Due to the monitoring system usually be installed outdoors without wired networks, users can use the I-8212W-3GWA to meet wireless (3G) Internet access and to send daily reports by E-mail or FTP Server. When an exception occurred, the system will do air sampling and send the short message (SMS) to related workers to carry out the next required procedures. Vise versa the workers can activate the sampling function by sending a short message (SMS) to this system.

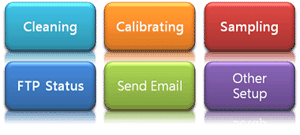

The system is divided into six functional subsystems according to the user‘s requirement: - Please refer to the website “Application Stories & Video - Air pollution monitoring and alarm system” for more detailed information.
- Related Products:
-
- Software:
。SoftLogic Software: ISaGRAF
http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/isagraf/isagraf.html
。HMI Designer: Soft-GRAF Studio (Free!)
http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/soft_graf/soft-graf.html
- Hardware:
。ISaGRAF PAC:
http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/isagraf/isagraf.html
。I-87K I/O Modules:
http://www.icpdas.com/root/product/solutions/remote_io/rs-485/i-8k_i-87k/i-8k_i-87k_selection.html
。2G/3G Wireless Modules/Modems:
http://m2m.icpdas.com/m2m_layer2_gprs.html
