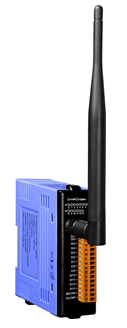

New Product: ZT-2053
ZigBee Wireless 14-channel Isolated Digital Input Module - Introduction:
- The ZT-2053 offers 14 digital input channels which can be used for either dry or wet contact. Its effective distance for dry contact is up to 500 meters. All channels are able to be used as 16-bit counters. The ZT-2053 includes 14 LED indicators to display the channel status as well as 4 kV ESD protection and 3750 VDC intra-module isolation. Users can easily to configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.
- Features:
-
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G /ZigBee Specifications
- Wireless Transmission Range up to 700 m
- GUI Configuration Software (Windows Version)
- 14 Dry or Wet Contact Digital Input Channels
- Supports 16-bit Counters for Digital Input Channels
- Surge and ESD Protection
- DIN-Rail Mounting
- Applications:
- Relative Products:
-
ZigBee Converters ZT-2550 RS-485/RS-232 to ZigBee Converter (ZigBee Coordinator) ZT-2551 RS-485/RS-232 to ZigBee Converter (ZigBee Router) ZT-2570 Ethernet/RS-485/RS-232 to ZigBee Converter (Host) ZT-2571 Ethernet/RS-485/RS-232 to ZigBee Converter (Slave) ZT-2510 ZigBee Repeater (Slave, ZigBee Router) ZigBee Digital I/O ZT-2042 ZigBee 4-ch PhotoMOS Relay Output and 4-ch Open Collector Output Module ZT-2052 ZigBee 8-ch Isolated Digital Input Module with 16-bit Counters ZT-2060 ZigBee 6-ch Isolated Digital Input and 4-ch Relay Output Module ZigBee Analog I/O ZT-2015 ZigBee 6-ch RTD Input Module with 3-wire RTD Lead Resistance Elimination ZT-2017 ZigBee 8-channel Analog Input Module with High Voltage Protection ZT-2017C ZigBee 8-ch Current Input Module with High Common Voltage Protection ZT-2018 ZigBee 8-ch Analog Input Module with High Voltage Protection ZT-2024 ZigBee 4-ch Voltage/Current Output Module ZT-2026 ZigBee 4-ch Voltage Input, 2-ch Voltage Output and 2-ch Digital Output Module - For more information, please visit the following website:
http://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wireless_solutions/zt-2053.html
