- New Product: ZT-2043

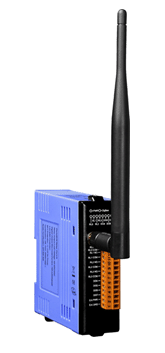

ZigBee Wireless 14-channel Isolated Digital Output Module - Introduction:
- The ZT-2043 offers 14 sink type digital output channels with short circuit protection. All channels feature photo-couple isolation. The ZT-2043 includes 14 LED indicators to display the DO channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are the standard. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.
- Features:
-
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G /ZigBee Specifications
- Wireless Transmission Range up to 700 m
- GUI Configuration Software (Windows Version)
- 14 Digital Output Channels for Open Collector
- Short Circuit Protection
- Surge and ESD Protection
- DIN-Rail Mounting
- Applications:
- Relative Products:
-
ZigBee Converters ZT-2550 RS-485/RS-232 to ZigBee Converter (ZigBee Coordinator) ZT-2551 RS-485/RS-232 to ZigBee Converter (ZigBee Router) ZT-2570 Ethernet/RS-485/RS-232 to ZigBee Converter (Host) ZT-2571 Ethernet/RS-485/RS-232 to ZigBee Converter (Slave) ZT-2510 ZigBee Repeater (Slave, ZigBee Router) ZigBee Digital I/O ZT-2042 ZigBee 4-ch PhotoMOS Relay Output and 4-ch Open Collector Output Module ZT-2052 ZigBee 8-ch Isolated Digital Input Module with 16-bit Counters ZT-2060 ZigBee 6-ch Isolated Digital Input and 4-ch Relay Output Module ZigBee Analog I/O ZT-2015 ZigBee 6-ch RTD Input Module with 3-wire RTD Lead Resistance Elimination ZT-2017 ZigBee 8-channel Analog Input Module with High Voltage Protection ZT-2017C ZigBee 8-ch Current Input Module with High Common Voltage Protection ZT-2018 ZigBee 8-ch Analog Input Module with High Voltage Protection ZT-2024 ZigBee 4-ch Voltage/Current Output Module ZT-2026 ZigBee 4-ch Voltage Input, 2-ch Voltage Output and 2-ch Digital Output Module - For more information, please visit the following website:
http://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wireless_solutions/zt-2043.html
