New Product: WP-5147 / WP-5147-OD
ISaGRAF based WinPAC-5000 (Windows CE 5.0 )


ICP DAS releases new ISaGRAF WinPAC-5000 series – WP-5147 and WP-5147-OD that running the Windows CE.NET 5.0 embedded operating system, and built-in the ISaGRAF SoftLogic (IEC 61131-3 international standard PLC programming languages) and the Soft-GRAF HMI. The WP-5147-OD model is the WP-5147 with audio function. The new ISaGRAF WinPAC-5000 series is suitable for many types of applications and is the most cost-effective controller of the ISaGRAF WinCE PACs.

● Product Introduction
WP-5147 and WP-5147-OD Series are equipped a PXA270 CPU (520 MHz) running a Windows CE.NET 5.0 operating system, various connectivity (VGA, USB, Ethernet, RS-232/485) and I/O expansion bus for one XW-Board. The benefits of running Windows CE 5.0 on WinPAC features hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. WinPAC is also capable of running ISaGRAF and PC-based control software such as Visual Basic .NET, Visual C#,…. etc. It has all of the best features of both traditional PLCs and Windows capable PCs.

● Software/Hardware Features
Software Features
Hardware Features
  • Windows CE.NET 5.0 Core
  • ISaGRAF Ver.3 SoftLogic Inside
  • Support IEC 61131-3 Standard
  • Support Soft-GRAF HMI
  • Hard Real-Time Capability
  • Accepts max. 1 MB ISaGRAF code size
  • PXA270 CPU (32-bit & 520 MHz)
  • VGA: Max. 800*600
  • I/O Expansion Bus
  • Audio with Microphone-In and Earphone-Out (WP-5147-OD)
  • Dual 10/100M Ethernet Ports
  • 64-bit Hardware Serial Number for Software Protection
  • 3 Serial Ports (RS-232 x 2 / RS-485 x 1)
  • Operating Temperature: -25 ~ +75 °C

● I/O Connection and Expansion
  • Support to connect the Touch Monitor: TPM-4100 / TP-4100 Series
  • Support to connect the ICP DAS Touchpad: TPD-280 / TPD-430 Series
  • Support to connect the InduSoft or the 3rd party SCADA/HMI (support Modbus TCP , RTU)
  • Support to connect the Modbus RTU I/O: ex. tM- series, M-7000, LC-103, LC-221
  • Support to connect the DCON I/O: ex. I-7000 series, RU-87P8 + I-87xxxW I/O (or I-87K8+I-87xxx )
  • Support to connect the Modbus TCP I/O: ex. tET series, ET-7000
  • Support to expand the I/O by inserting one XW board in the WP-5147: ex. XW107, XW107i, XW110i, XW304

More information are listed in the website: http://www.icpdas.com/products/PAC/winpac/wp-5147.htm

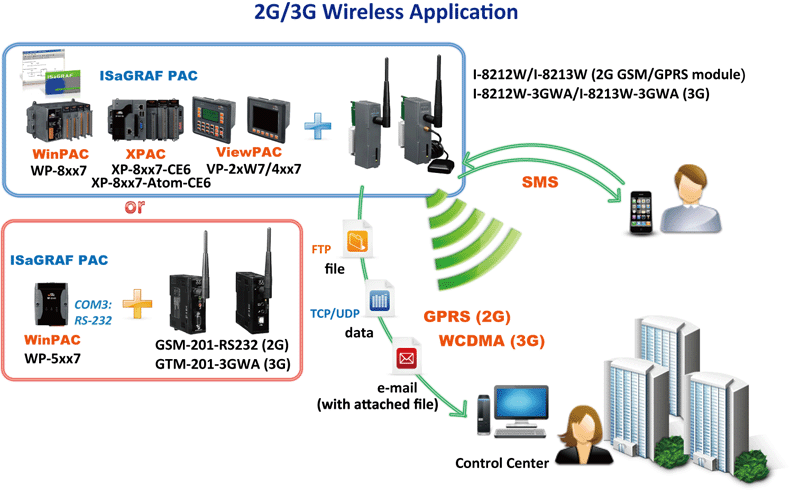

● Applications




More applications are listed in the website: http://www.icpdas.com/products/PAC/common_file/application-notes-c.htm#ap-soft-graf

● More ICP DAS ISaGRAF Products Information
ISaGRAF PAC Datasheet : http://www.icpdas.com/products/PAC/i-8000/data sheet/data sheet.htm
ISaGRAF PAC Web : http://www.icpdas.com/products/PAC/i-8000/isagraf.htm
ISaGRAF PAC Manual : http://www.icpdas.com/products/PAC/i-8000/getting_started_manual.htm
ISaGRAF PAC FAQ : http://www.icpdas.com/faq/isagraf.htm
I-8K & I-87K high profile I/O modules : http://www.icpdas.com/products/PAC/i-8000/8000_IO_modules.htm
