新產品 : ZT-2550/ZT-2551, RS-485/RS-232 ZigBee無線訊號轉換器


簡介:
ZT-2550與ZT-2551系列模組支援RS-232、RS-485與ZigBee無線訊號的轉換。基於IEEE 802.15.4標準協定所設計,其通訊頻率可調整介於2405MHz ~ 2480MHz之間,並固定劃分為16個RF通訊頻道,每個RF通訊頻道的頻率間隔5MHz;同時提供了16384個邏輯網路群組代碼(Pan ID, 0x0000 ~ 0x3F00) 泓格科技的ZT ZigBee系列產品的優勢在於其低成本、低功耗,並遵循ZigBee聯盟制訂的通訊規範ZigBee 2007(ZigBee Pro);其中,一個ZigBee無線網路內只允許一台主機並稱為”協調者” (Coordinator),為ZT-2550系列,其主要的作用為初始化以及路由路徑管理;另外,一個ZigBee網路可支援255台ZigBee子機,其作用為傳送、接收來自於父節點或是子節點的資料。

在泓格科技ZT-2000模組中,提供了友善的圖型設定介面環境,以利使用者快速熟悉ZigBee產品的設定與操作。

其定義的傳輸距離為700公尺(Line of Sign, LOS)。同時ZigBee子機也可以扮演路由者的角色,作為ZigBee中繼器使用作距離延伸,以提升訊號品質,若使用者對泓格科技系列產品有任何的疑問,同時可參考以下文件及資訊:
http://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wireless_solutions/wireless_selection.html#e
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/document

模組特色:
  • 提供RS-232/RS-485通訊埠作訊號轉換
  • 使用2.4G通訊頻段以及符合IEEE802.15.4規範
  • 符合ZigBee Pro(ZigBee 2007)通訊協議
  • 友善圖型設定介面(Windows版本)
  • DIN-Rail安裝方式

模組規格:
  • RS-232/RS485通訊埠支援N81/O71/E71/N82/O81/E81資料格式
  • 400 Bytes資料緩衝區
  • 通訊範圍高達700公尺(直視距離)
  • 提供5 dBi全向性增益天線

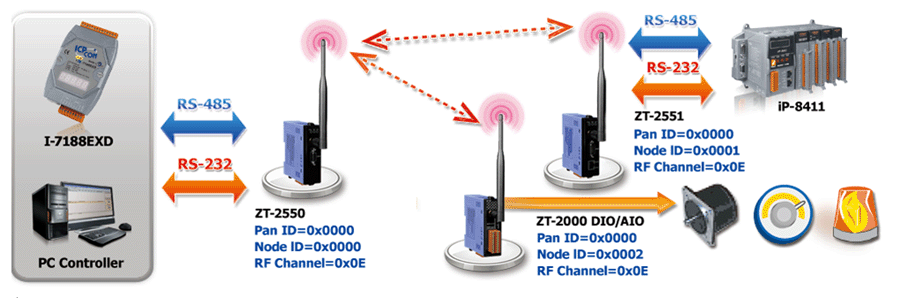

應用:

其它ZT-2000相關產品:
ZigBee Converters (已開始發售)
ZT-2570 Ethernet/RS-485/RS-232 ZigBee無線訊號轉換器主站(ZigBee Coordinator)
ZT-2571 Ethernet/RS-485/RS-232 ZigBee無線訊號轉換器從站(ZigBee Router)
ZT-2510 ZigBee Repeater (Slave, ZigBee Router)
ZigBee Digital I/O (即將發售)
ZT-2042 ZigBee 4-ch PhotoMOS Relay Output and 4-ch Open Collector Output Module
ZT-2043 ZigBee 14-ch Isolated Digital Output Module
ZT-2052 ZigBee 8-ch Isolated Digital Input Module with 16-bit Counters
ZT-2053 ZigBee 14-ch Isolated Digital Input Module
ZT-2060 ZigBee 6-ch Isolated Digital Input and 4-ch Relay Output Module
ZigBee Analog I/O (即將發售)
ZT-2015 ZigBee 6-ch RTD Input Module with 3-wire RTD Lead Resistance Elimination
ZT-2017 ZigBee 8-channel Analog Input Module with High Voltage Protection
ZT-2017C ZigBee 8-ch Current Input Module with High Common Voltage Protection
ZT-2018 ZigBee 8-ch Analog Input Module with High Voltage Protection
ZT-2024 ZigBee 4-ch Voltage/Current Output Module
ZT-2026 ZigBee 4-ch Voltage Input, 2-ch Voltage Output and 2-ch Digital Output Module
