home > news > products > 2012

TPD-283U has been released!

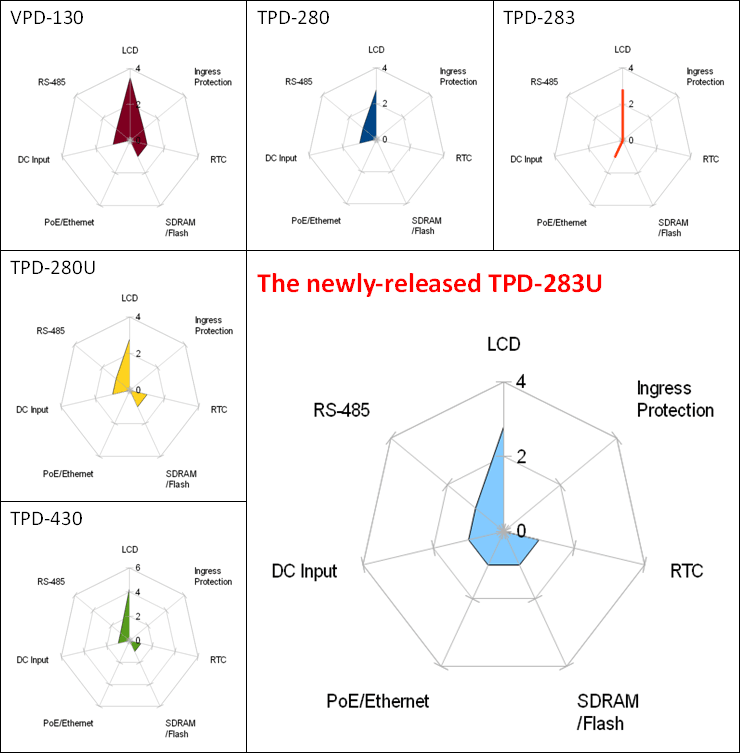

We have now formally released TPD-283U as new 2.8” touch screen HMI devices. Comparisons between the previously-released devices and TPD-283U as below:



TPD-283U, tiny touch screen HMI devices designed for building and home automation, is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Meantime, it can be seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. TPD-283U offers the way to upgrade mechanical switches into intelligent control pads.

Specifications of TPD-280U/ TPD-283U:
Models
TPD-280U
TPD-283U
CPU Module
CPU
32-bit RISC CPU
Memory Expansion
16 MB SDRAM / 8 MB Flash
Real Time Clock (RTC)
Yes
Buzzer
Yes
Rotary Switch (0~9)
Yes
Communication Interface
Serial Port
RS-485 (including Self-Tuner)
Ethernet
-
RJ-45 x 1, 10/100 Base-TX
USB 1.1 Client
Firmware updates only
MMI (Main Machine Interface)
LCD
2.8” TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life
20,000 hours
Brightness
160 cd/m2
Touch Panel
Yes
Reset Button
Yes
Electrical
Power Input Range
+10 ~ 30 VDC
+10 ~ 30 VDC or PoE (Power over Ethernet)
Power Consumption
1.2 W (50 mA @ 24 VDC)
1.2 W (50 mA @ 24 VDC) or IEEE 802.3af, Class 1
Mechanical
Dimensions (WxLxH)
76mm (W) x 119mm (L) x 31mm (H)
Installation
Wall Mount
Environmental
Operating Temperature
-20 ~ +70 °C
Storage Temperature
-30 ~ +80 °C
Ambient Relative Humidity
10 ~ 90% RH, non-condensing

Installations for TPD-283U:
TPD-283U with External Wall Box, EWB-T28 (optional)
TPD-283U with Outlet Box, OB120 (optional)

TouchPAD sites: http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/touchpad_introduction.html
Email: service@icpdas.com
