ICP DAS Releases New Product: WISE-5801 - Intelligent Data Logger PAC Controller with SMS function

WISE-5801 is the latest PAC controller of WISE-580x series from ICP DAS. WISE-5801 provides an easy-to-use web page for users. No programming is required; it takes only a few clicks on web pages via browsers to implement control logic settings. The built-in IF-THEN-ELSE logic engine inside WISE-5801 will check whether the logic rules are valid or not and determine the execution of actions under specific conditions, for examples: setting up I/O channel values, perform scheduled and Timer tasks, sending Email /CGI command under a specific condition. WISE-5801 allows to connecting with a wide range of XW-Boards, I-7000 I/O modules and Modbus RTU Slave devices that enables users to freely choose the most suitable I/O modules for the applications. With the microSD card, WISE-5801 also provides Data Logger function to real-time record the I/O data of the controller and sends back the data files by FTP or Email at a scheduled time to the control center for further administration management or data analysis. In addition, through the Modbus TCP/RTU Protocol, WISE-5801 enables seamless integration with SCADA software or HMI devices to control or monitor I/O channels on controllers in real time.

In response to the increasing global popularity of mobile device applications, in addition to all advanced features inheriting from the existing WISE-5800, WISE-5801 also incorporates two-way SMS message interactive control function. Apart from the traditional SMS message sending function that enables to send alarm status reports to mobile devices, WISE-5801 also allows to receive the SMS commands from the mobile devices to retrieve the I/O channel data, modify the output channel data or trigger IF-THEN-ELSE rule execution. Detailed description is as below:

SMS alarm message sending function
WISE-5801 equips a built-in GSM module that enables SMS alarm message sending function. SMS is an important function for real-time message communication. The SMS sending action can be added to the logic edition as part of IF-THEN-ELSE logic control to provide real-time message sending in response to specific events. WISE-5801 also provides intuitive interface for users to add the I/O channel encoded string into the SMS content, so that the receivers will receive the SMS message with the real-time I/O channel values of WISE-5801 in the SMS content.

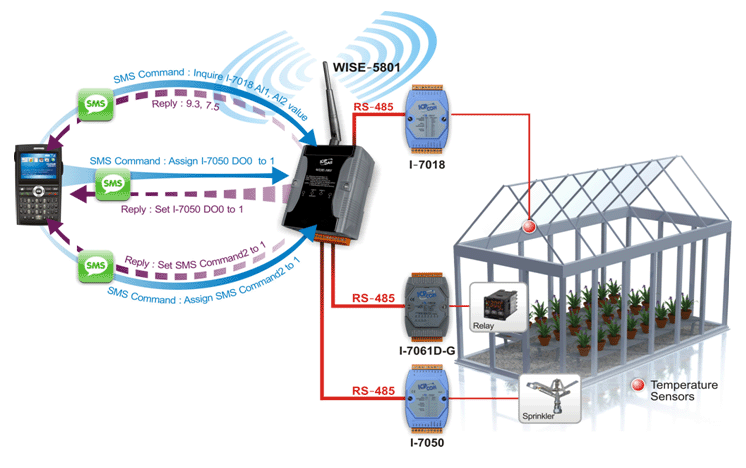

SMS command receiving function
The built-in GSM module inside WISE-5801 also provides SMS command receiving function. WISE-5801 allows up to three authorized phone numbers settings. To avoid unauthorized access to the controller, WISE will only accept the SMS commands sent by these three authorized phone numbers. The process is secure and simple. When WISE-5801 receives the SMS command, the corresponding actions will be processed by the WISE rule engine, and the result of the action will also be replied to the user by SMS message. Three types of SMS commands are supported.

Real-time I/O channel data retrieve: retrieve specific I/O channel real-time data of WISE-5801 by SMS command.
Modify output channel data: modify output channel or Internal Register data of WISE-5801 by SMS command.
Trigger IF-THEN-ELSE rule execution: set the SMS variable value to trigger the IF-THEN-ELSE rule execution by SMS command.

With the release of WISE-5801, ICP DAS also announces the release of v2.2 firmware for WISE-580x series controller. The v2.2 firmware is for all WISE-580x controllers. The major improvements are described as below:

Web page for mobile device operation
In order to meet the requirement from mobile device users who want to monitor the real-time status of WISE controller through Web page; now, ICP DAS provide the WISE Web page for mobile devices in the new v2.2 firmware. This enhancement provides a better visual effects and optimum use of screen arrangements for mobile devices. With this design, it provides instant access to the WISE controller and guarantee excellent user experience in a simple, easy and convenient way.

Full access management
In v2.2 firmware, WISE provides two password sets to login into the system, one for Administrator, the other for Guest. With the login interface to Logic Setting page and Channel Monitoring page, it allows to assign different authorized access right to different users.

Administrator

Guest

Allow to perform parameters & logic setting.

Allow to monitor or modify the I/O channel data.

Allow to monitor the I/O channel data.

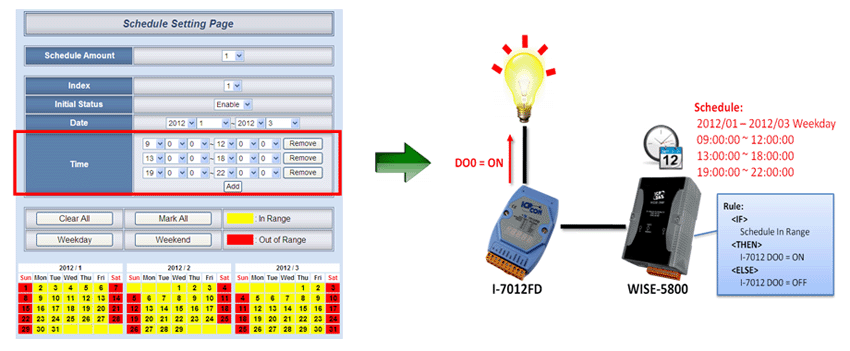

More powerful schedule function provided
In the old version WISE firmware, each Schedule task only supports one time range setting. Now In v2.2 firmware, each Schedule task can support up to 12 time range settings. This enhancement enables WISE to be suitable for applications which need more Schedule task operations, such as 3 shifts lighting control system in factory or office, school bell control systemKetc. WISE-580x (with v2.2 firmware) makes the implementation of these systems being easier and more flexible.

WISE-580x Features

No programming is required to implement logic content on controllers.
No extra software tool is required; all operations can be done through the Web browsers.
IF-THEN-ELSE logic rules execution ability.
Supports XW-Board and I-7000 I/O modules for I/O operation.
Ability to connect to Modbus RTU Slave devices to meet various requirements in different industrial automation applications.
Provides Timer task operation.
Provides Schedule task operation, each schedule provides 12 time range settings. (New)
Supports real-time remote alarm via Email, and CGI command sending function.
Supports SMS alarm message sending and SMS command receiving function. (New, apply to WISE-5801 only)
Seamless integration with SCADA/HMI device through Modbus TCP/RTU protocol.
Provides data logger function and data file send back (FTP or E-mail) operation.
Supports SNTP for time synchronization through network.
Provides mobile-friendly web page. (New)

WISE-580x (with Firmware v2.2) Specification

Hardware

Software

16-bit CPU.
768KB/512KB for SRAM/Flash.
Equips microSD storage for Data Logger.
Offers a wide range of I/O modules.
- Remote I/O: Connect to I-7000 modules and Modbus RTU Slave devices via RS-485.
- Local I/O: Connect to XW-Board via Local Bus.
10/100 Base-TX Ethernet.
GSM module for SMS message sending and command receiving. (GSM Quad-band 850/900/1800/1900 MHz; apply to WISE-5801 only)
Power Consumption: 2 W (Without XW-Board).
Operating Temperature: -25 ~ +75 XC.

36 IF-THEN-ELSE logic rules supported.
I-7000 modules (up to 16) & 1 XW-Board supported.
Modbus RTU Slave devices (up to 4) supported.
12 Timers/12 Schedules supported.
12 Emails/12 CGI Commands supported.
12 SMS alarm messages supported (apply to WISE-5801 only)
3 Type of SMS commands supported (apply to WISE-5801only)
48 Internal Registers supported.
12 Recipes supported.
Data logger and data files send back function supported.
Time Synchronization for SNTP.
Modbus TCP/RTU protocol supported for SCADA/HMI device integration.

Now you are free from being distressed by the annoying program development and debug process. Just a few clicks on the mouse via WISEs Web page, you can complete the controllers logic rule design instantly at your fingertips. WISE features Easy-to-Use Web Interface, provides wide range I/O modules to choose from, equips with more useful functions and enables seamlessly integration with SCADA package/HMI devicesKetc, therefore, will be your best choice in Automation Control/Monitoring systems development. For more information about WISE product, please visit WISE WEB site (http://wise.icpdas.com/) or ICP DAS Web site (http://www.icpdas.com).
