home > news > products > 2011

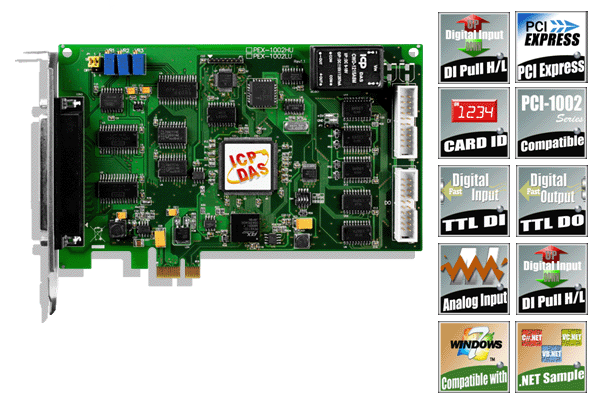

ICP DAS New Product Release: PEX-1002L/1002H
PCI Express, 32-Channel, 12-bit, 110 kS/s or 44 kS/s Low Gain Multi-function DAQ Board


Introduction:
The PEX-1002L/1002H card is the new generation product that ICP DAS provides to meet RoHS compliance and the new PEX-1002 series card is designed to easy replacement for the PCI-1002 series. Users can directly use the new PEX-1002 series card without modifying their software and wiring.

The PEX-1002 has a PCI Express interface, and it features 110 k Samples/Sec or 44 k Samples/Sec 12-bit resolution A/D converter, 16-ch 5V/TTL digital input and 16-ch 5V/TTL digital output. PEX-1002L/1002H provides either 32-ch single-ended or 16-ch differential analog inputs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (1/2/4/8 for Low Gain,01/10/100/1000 for High Gain).

The PEX-1002 also adds a Card ID switch and pull-high/low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002 series cards in one computer. The pull-high/ pull-low resisters are used to specify the DI status; when the DI channels are unconnected, the DI status will remain in predefined status without being left floating.

The PEX-1002 software supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT and Windows XP/2003/Vista/2008/7 32/64-Bit. It also provides the DLL ,ActiveX control, and various language sample programs of Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET MATLAB and LabVIEW to help users to quickly and easily develop their applications.

PEX-1002L V.S. PCI-1002LU
  PEX-1002L/1002H PCI-1002LU/1002HU
Interface PCI Express Universal PCI
Wiring/Pin assignments Compatible
Software/API Compatible
DIO response time 500 kHz 1.0 MHz
Card ID Yes(4-bit) N/A

Feature & Special:
  • PCI Express interface.




  • Card ID function: Users can set Card ID to recognize sequence of card when using two or more I/O cards of the same model in one computer.




  • Digital input status can be set to pull-high or pull-low; when the digital input channels are unconnected, the status will hold in predefined status. (non-floating)




  • 16 digital- input channels
  • 16 digital-output channels
  • DIO response time is about 2 gs (500 kHz max.)




  • 12-bit high resolution, 110 or 44 k Hz A/D converter
  • 32 single-ended/16 differential analog inputs
  • Programmable low gain:1/2/4/8
  • Programmable high gain:1/10/100/1000




  • Fully compatible with the PCI-1002 series product including
  • software and hardware.



  • Supports .NET program
  • Provides Microsoft Visual C#.NET 2005 sample programs
  • Provides Microsoft Visual Basic.NET 2005 sample programs
  • Provides Turbo C++, Borland C++, Microsoft C++ sample programs
  • Provides Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs



  • Supports 32/64-bit Windows 7
  • Supports 32/64-bit Windows XP/2003/Vista/2008
  • Supports Windows 98/NT/2000


More information, please refer to.. http://www.icpdas.com/root/product/solutions/pc_based_io_board/pci/pci-1002.html
