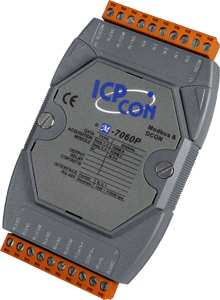

The M-7060P module provides 4 digital input channels, plus 2 Form A power relay output channels and 2 Form C power relay output channels.
In addition, the digital input channels can be selected as either sink type or source type via wire connections, and all input channels are able to be used as 16-bit counters. The M-7060PD also has 8 LED indicators that allows for monitoring of power relay outputs and digital inputs, both of which support the Modbus RTU and DCON protocols and can be configured via software. Options are also available for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are provided to enhance noise protection capabilities in industrial environments. M-7060P provides high power relay outputs for Form A (16 A @250 VAC/10 A @ 30 VDC) and Form C (10 A NO/6 A NC @250 VAC & 10 A NO/6 A NC @30 VDC). |
