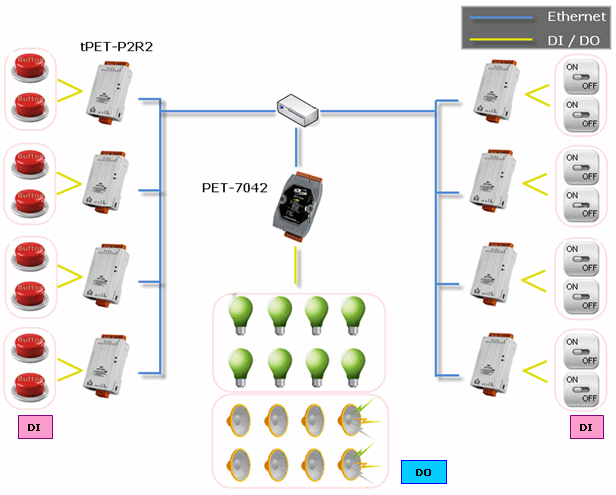

This application note indicates the ideal cases that only a few of DI/DO required in every different place. It introduces an example of I/O pair-connection (Push Mode) as below using:

8 x tPET-P2R2 iTotal 16 x DI j
and 1 x PET-7042 i Total 16 x DO j

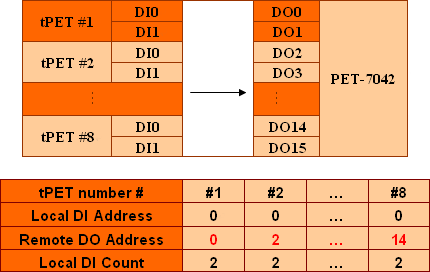

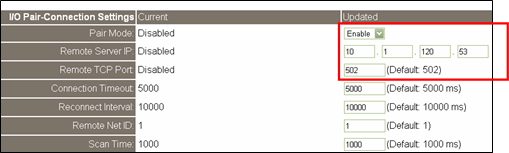

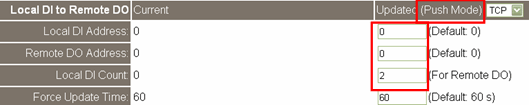

First, please refer to following figures:

Once these configurations are completed, the pair-connection between DI of tPET-P2R2 and DO of PET-7042 has been created through the Ethernet.

The advantages of this application architecture are as follow:

1. User can enable Pair-connection function by easy setting in web configuration without any programming work.
2. In the pair-connection mode, the modules can operate well in Ethernet or independent network even without computers.
3. Using Push Mode method in pair-connection will reduce the network loading. (High efficiency).
4. Cost-effective solution.

Through this example case, the DI status of local channels can be easily transferred to the remote DO devices via the common Modbus/TCP protocol. Especially ideal for the digital I/O devices that do not themselves have Ethernet capability.

Note:

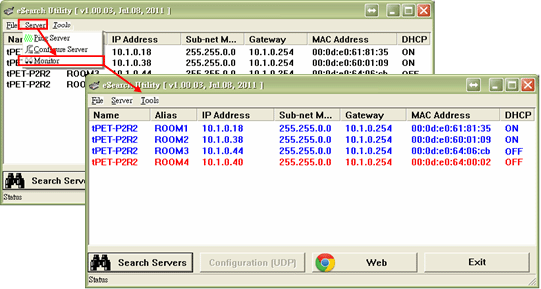

Using the monitor function in eSearch utility on PC, user can identify the statuses of all tPET modules intuitively in the same LAN network.
The font color Blue/Red means Alive/Dead.
