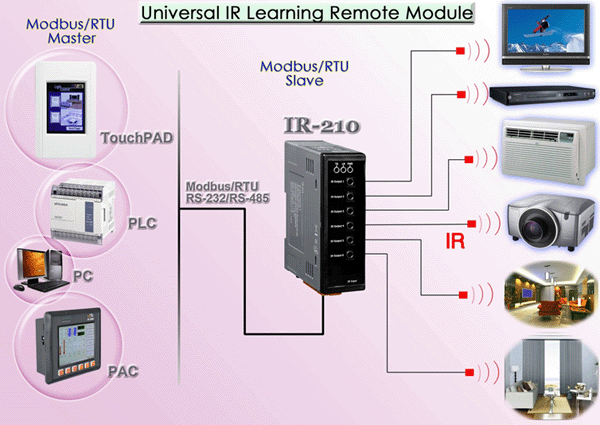

The IR-210 is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning results can be stored in the module or saved to a file. The IR-210 supplies 6 IR output channels for individual and simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus/RTU protocol provide an easy way of remote control by the Modbus master devices, such as PC, PLC and ICPDASs PACs. As a replacement of IR remote controls and with more flexible expansion and control on the module, IR-210 is well-suited for smart home and building automation.

• 6 IR output channels for controlling multiple devices.
• 1 IR learning input.
• Supports IR carrier frequencies: 32.768B36B37.037B38B40 and 56 kHz.
• Can learn and store 176 IR commands.
• Supports RS-232 and RS-485 serial interface.
• Supports Modbus/RTU protocol.
• Assignable 256 Modbus Network IDs.
• Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps.
• Configurable NONE/ODD/EVEN parity and 1 or 2 stop bits.
• Provides transmitting/learning/power indication LEDs.
• Built-in Watchdog.
• RoHS Compliance.

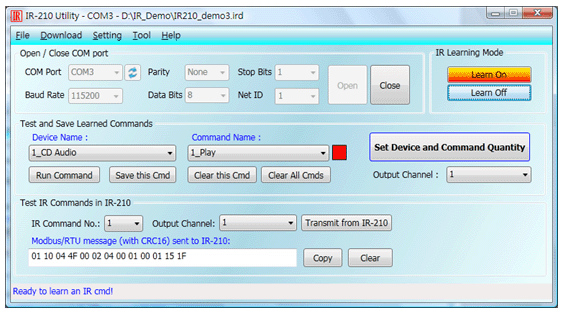

The IR-210 Utility is an easy tool for users to develop their IR-210 applications. It can help users to configure and test the IR-210 efficiently. The functions of the IR-210 Utility are as follows:

• IR quantity configuration.
• IR commands learning and testing.
• Save IR learning commands to files.
• Get/Set IR learning commands from/to IR-210.
• Reference to Modbus commands.
• Set/Reset basic settings of IR-210.
