TPD-430/TPD-430-EU have been released!



We have now formally released TPD-430/TPD-430-EU as new 4.3 touch screen HMI devices.
Compared with TPD-280 and TPD-283, TPD-430/TPD-430-EU expand its memory to 16 MB SDRAM/ 8 MB Flash, support real time clock (RTC) and USB 1.1 client (firmware update only). And compared with TPD-280U which has a 2.8 touch screen, TPD-430/TPD-430-EU replace their touch screen to a 4.3 one and add an LED indicator in the front.

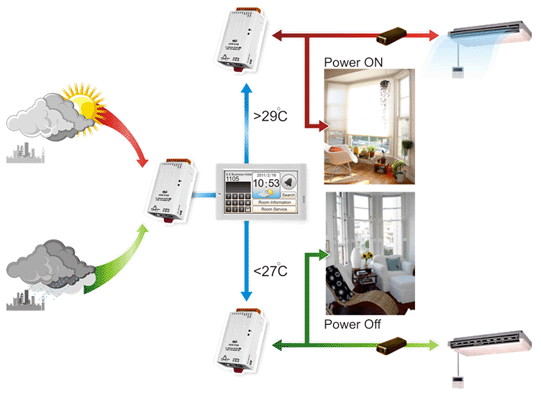

TPD-430/TPD-430-EU, tiny touch screen HMI devices designed for building and home automation, are equipped with high resolution TFT color touch screen and fit in with regular electrical wall-mount outlet. Meantime, it can be seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. TPD-430/TPD-430-EU offer the way to upgrade mechanical switches into intelligent control pads.

Specifications of TPD-430/TPD-430-EU
Models TPD-430 TPD-430-EU
CPU Module
CPU 32-bit RISC CPU
Memory Expansion 16 MB SDRAM/8 MB Flash
Real Time Clock (RTC) Yes
Speaker Yes
Rotary Switch (0~9) Yes
Communication Interface
Serial Port RS-485 (including Self-Tuner)
USB 1.1 Client Firmware updates only
MMI (Main Machine Interface)
LCD 4.3 TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 400 cd/m2
Touch Panel Yes
LED Indicator Yes
Reset Button Yes
Electrical
Power Input Range +10 ~ 30 VDC
Power Consumption 2.5 W (104 mA @ 24 VDC)
Mechanical
Dimensions (W x L x H) 126 mm (W) x 82 mm (L) x 24 mm (H) 126 mm (W) x 92 mm (L) x 29 mm (H)
Installation Wall Mount
(Suitable for the outlet box in United States)		 Wall Mount
(Suitable for the European 86 mm x 86 mm outlet box)
Environmental
Operating Temperature -20 ~ +70 XC
Storage Temperature -30 ~ +80 XC
Ambient Relative Humidity 10 ~ 90% RH, non-condensing

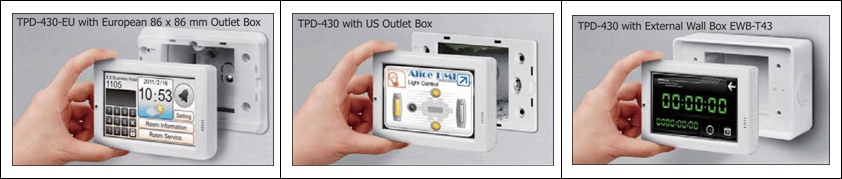

Installations for TPD-430/TPD-430-EU:

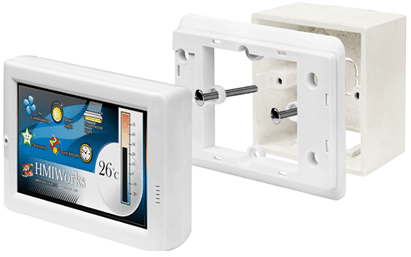

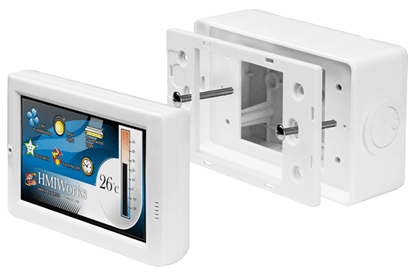

TPD-430 with External Wall Box, EWB-T43 (optional)

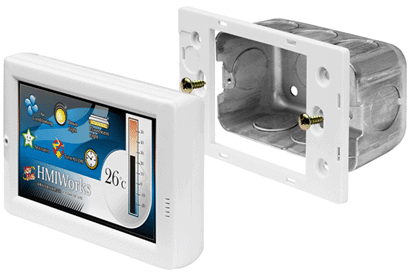

TPD-430 with Outlet Box, OB120 (optional)

TPD-430-EU for European 86 x 86 mm outlet box


TouchPAD sites: http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/touchpad_introduction.html
Email: service@icpdas.com
