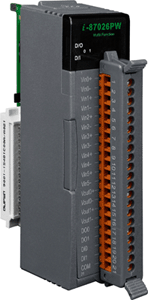

The I-87026PW is a multifunction module that includes 6 analog input channels, 2 analog output channels, 2 digital input channels, 2 digital output channels. It provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ 20 mA), Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable. Analog outputs are 12 bit at +/-5 V, +/-10 V, 0 ~ 20 mA or 4 ~ 20 mA and all digital outputs can be set as alarm output. |
