GW-7553 (PROFIBUS/Modbus TCP Gateway) firmware update and new functions release (Support PROFIBUS DP-V1)

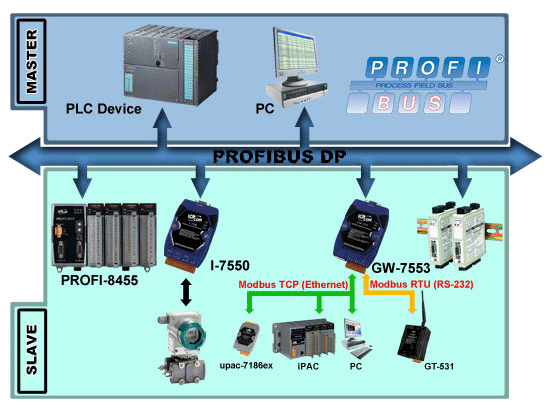

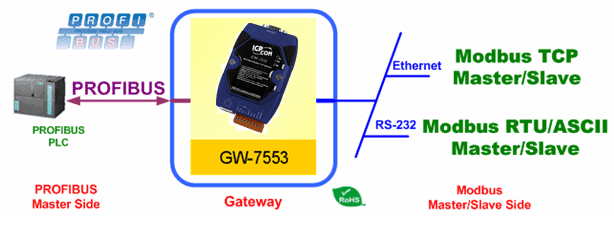

The GW-7553 is a PROFIBUS Gateway to support PROFIBUS DP Slave and Modbus protocols. It allows the PROFIBUS Master to access the Modbus TCP Master/Slave devices. These Modbus TCP devices can be a PLC, a sensor, ICPDAS PACs, I-8KE4-MTCP, ET-7000 series, and so forth. New GW-7553 provides PROFIBUS DP-V1 service. PROFIBUS DP-V1 is the extension of DP-V0, it extend the original cyclic data exchange to acyclic data exchange.

PROFIBUS DP-V1 extension consists of two parts:
  1. Master-Slave acyclic communication Class 1 (MSAC_C1)
  2. Master-Slave acyclic communication Class 2 (MSAC_C2)


service
MSAC_C1 Master class 1 reads a data block from the slave (Read)
Master class 1 writes a data block to the slave (Write)
An alarm is transmitted from the slave to the master, which explicitly acknowledge receipt (AlarmBAlarm_Ack)
MSAC_C2 Setup of a connection for acyclic communication between the master class 2 and the slave (Initiate)
Master class 2 reads a data block from the slave (Read)
Master class 2 writes a data block to the slave (Write)
Master class 2 can write application-specific data acyclically to the slave and, if required, read data from the slave in the same cycle (Data Transport)
Termination of a connection for acyclic communication between the master class 2 and the slave (Abort)

The new firmware (version 2.0) adds PROFIBUS DP-V1 acyclic communication. It provides acyclic read & write service for both master class 1 and master class 2, and it also provides initiate serviceBabort service and acyclic Data Transport service for master class 2.



Features:

  • RoHS Design
  • 16-bit Microprocessor inside with 80 MHz
  • Profichip VPC3+C PROFIBUS controller
  • Support PROFIBUS DP-V0 & DP-V1 slave
  • PROFIBUS transmission rate detected automatically
  • Max transmission speed up to 12 Mbps for PROFIBUS and 115.2 kbps for COM Port
  • Support Modbus RTU/ASCII/TCP format
  • Support Modbus Master/Slave mode
  • Support safe value setting
  • COM Port with 1 Kbytes QUEUE input buffer & 512 bytes QUEUE output buffer
  • Max length of in/output data is 240/240 Bytes
  • Ethernet Port: 10/100 Base-TX
  • 2500 Vrms High Speed iCoupler Isolation Protection for PROFIBUS network
  • 3000 VDC Isolation Protection on the PROFIBUS side
  • Provide LED indicators-PWD, ERR and RUN LEDs
  • Built-in Watchdog
  • Mountable on Rail DIN
  • Provide English/Chinese manuals

For more information, please visit the following website: http://www.icpdas.com/products/Industrial/profibus/gw-7553.htm
About the user manual, please refer to the website: http://ftp.icpdas.com.tw/pub/cd/fieldbus_cd/profibus/gateway/gw-7553/manual/
