ICP DAS New Product Release : CNT-CAN (CAN bus Connector) & CNT-PROFI (PROFIBUS Connector)

CNT-PROFI PROFIBUS Connector	CNT-CAN CAN bus Connector

~NEW~	~NEW~

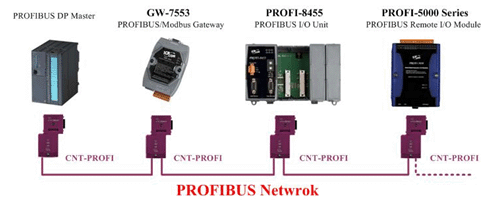

The CNT-CAN/CNT-PROFI connectors are used to connect a CAN bus/PROFIBUS node to the CAN bus/PROFIBUS line.

Applications:

CAN bus network application

PROFIBUS network application

Hardware Specifications

	CNT-CAN	CNT-PROFI
Cable outlet	90X cable outlet	90X cable outlet
Connector	9-pin, D-Sub female connector	9-pin, D-Sub male connector
Programming connection	9-pin, D-Sub male connector	None
Baud rate	10kbps ~ 1Mbps	9.6kbps ~ 12Mbps
Terminating resistor	Yes, by switch	Yes, by switch
Operating temperature	-25XC ~ 75XC	-25XC ~ 75XC
Storage temperature	-30XC ~ 80XC	-30XC ~ 80XC
Humidity	10 ~ 90% RH, non-condensing	10 ~ 90% RH, non-condensing

Ordering Information

CNT-PROFI	PROFIBUS Connector
CNT-CAN	CAN bus Connector

For more information, please visit the following website:
http://www.icpdas.com/products/Remote_IO/can_bus/CNT-CAN.htm
http://www.icpdas.com/products/Industrial/profibus/CNT-PROFI.htm
