W-8x31-GM1 /
W-8x81-GM1 PAC
|
|
|
(Programmable Automation
Controller) for Machine
Automation |
|
|
|
|
|
WinCon-8000 PAC |
|
|
Windows
CE operating
system is resident in the flash memory of the WinCon GM1 CPU module.
User's programs can be saved in external storage device, such as
Compact Flash card, USB drive or RAM by download through LAN or USB.
ICP DAS provides SDK to help user to implement application easily to
control i-8000, I-7000 series I/O modules by using Embedded Visual
C++. WinCon Utility is a built-in convenient tools for WinCon
system configuration, I/O configuration, system monitoring and software
update.
Another fantastic tool we provide to customers is a software package -
EzProg-I. EzProg-I contain 6 function modules: Ezconfig, EzGo, Ezmake,
EzHMI, EzLib & EzCore. Based on these function modules,
customers
can directly configure & test WinCon's I/O and motion control
module without additional programming effort. Moreover, EzProg-I also
simplify the I/O instruction and provide the I/O mapping table as PLC
system provide for machine maker or control system designer. As we
know, these users use PLC as the system implementation tool, now they
can use EzProg-I as the system development tool based on WinCon with
WinCE operation system; and with effective knowledge transfer, the
developers could easily shift from PLC programming to EzProg-I
programming. In addition to system configuration & programming
,
EzProg-I also provide many useful HMI ActiveX components for machine
maker or control system designer. Now they can integrate these HMI
components with the HMI design in an easy way. HMI component concept
also allows customers to re-use them in other system. It improves the
software programming productivity greatly.
EzProg-I is a total solution for system configuration, logic
programming & HMI design for machine maker or control system
designer. By this tool, PLC system engineers can easily transfer their
programming experience to ICP DAS's WinCon PAC solution. EzProg-I let
customer easily integrate PLC and IT technology. |
|
|
|
|
|
Features |
|
|
 |
ATL,
ActiveX Component and MFC for Windows CE |
|
Embedded Visual C++ |
|
Full developing
tool of EzProg-I： |
|
- EzConfig：Using
the configuration Tool in WinCon system directly.
- EzHMI：ActiveX
component of EzHMI for AP GUI and PC development.
- EzCore：Integrate
the EzConfig and EzHMI kernel engine
- EzLib：Integrate
the MFC function、data transfer、BMP file、TCP/IP.. and transfer data and
save/read parameter useful library.
- Standard AES Key
generator：Integrate the hardware number of WinCon+ the key number of
Designer=AES key
- CFG Tool：Setting
the password of FTP & Telnet server and adjust the local memory
within Wincon-8000 embedded controller.
|
|
WinCon-8000
SDK can be used to control I-8000 I/O modules |
|
Let user fast to
build multitasking process by inside 3 level 8th thread of EzProg-I. |
|
RS-232/485
Device Connection |
|
Http
server, FTP server and Web-based control application development |
|
Add-on FRAM(128K)
hardware design to support power outage carry-over and keep parameter. |
|
WinCon-8x81-GM1
system configuration utility: WinCon Utility 3.0 |
|
System OS Image
supports hardware interrupt of I-8048 module and motion control of
i-8092F/I-8094/I-8094F/I-8094A/I-8094H. |
|
Multiple Booting
Selection: Flash(Default), CF and USB disk( just only for w-8x81-GM1) |
|
|
|
|
|
|
Software
development support |
|
|
|
WinCon SDK |
|
ICP DAS provides
two DLL files,
which are WinconSDK_DLL and Wincon_DLL , for I-8000 series modules to
be used in the Wincon-8000 Embedded Controller. The WinconSDK_DLL has
essential DLL functions designed for I-8000 series modules for the
Microsoft Windows CE.Net platform. It can be applied and called by
eMbedded Visual C++ , 2003 Visual studio C#.NET and VB.NET on WinCE
.Net and newer platforms. Users can easily develop WinCE.NET
applications for the WinCon-8000 by using this toolkit. |
|
EzConfig |
|
ICP DAS provides a
I/O configuration and testting tool, which is configuring the digital
I/O, analog I/O and Virtual I/O( M/D/F/DB/C/T…etc.) for
I-8000 series modules and Virtual I/O to be used in the Wincon-8000
Embedded Controller. The EzConfig has built an essential DLL( EzCore)
functions designed for I-8000 series modules for the Microsoft Windows
CE.Net platform. It can be applied and called by eMbedded Visual C++ .
Users can easily develop WinCE.NET applications for the WinCon-8000 by
using this toolkit. |
|
EzGo |
|
ICP DAS provides a
Motion testing tool, which is EzGo , for i-8094,i-8094F, i-8092F
modules to be used in the Wincon controller of Machine automation. The
EzGo could offer to test i-8094,i-8094F, i-8092F modules for the Wincon
controller of Machine automation. Users can easily test their Motion by
the tool. |
|
EzMake |
|
ICP DAS provides a
Motion building tool, which is EzMake , for i-8094A and i-8094H modules
to be used in the Wincon controller of Machine automation. The EzMake
could offer to make Micro program of i-8094A and i-8094H modules for
the Wincon controller of Machine automation. Users can easily design a
micro program by the EzMake tool. |
|
WinCon
Utility |
|

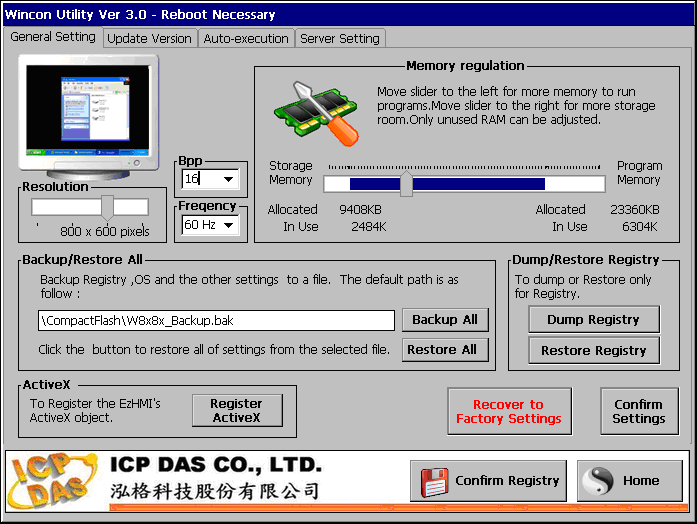

The WinCon Utility
provides many tools to save/view the system information registry and
setup the HTTP/FTP path and update non-volatile internal memory within
Wincon-8000 embedded controller.
 |
| ● |
General Setting |
|
■ |
Device name |
|
■ |
Memory regulation |
|
■ |
Display resolution setup |
|
■ |
Confirm setting/Recover
to factory setting |
|
■ |
Dump Registry/Restore
Registry |
|
■ |
Backup/Restore All |
|
■ |
Register ActiveX |
| ● |
FTP/HTTP setup |
| ● |
Update Version |
|
■ |
OS image upgrade |
| ● |
Auto-execution |
| ● |
Server setting |
|
|
|
|
|
|
|
|
Hardware Specifications |
|
|
W-8331-GM1/W-8731-GM1 |
|
|
W-8381-GM1/W-8781-GM1 |
|
|
I-8k
series motion modules for
GM1 PAC |
|
|
Accesories |
|
|
|
|
|
Ordering
information |
|
|
W-8331-GM1
W-8731-GM1 |
Wincon
Series
of Machine automation compact embedded controllers equips a Strong ARM
CPU (206MHz); running Windows CE.NET 4.1 operating system;
include several software development tools such as WinConSDK, WinCon
Utility, EzConfig, EzGo and EzMake tools. |
|
W-8381-GM1
W-8781-GM1 |
Wincon
Series
of Machine automation compact embedded controllers equips a PXA270 CPU
(520MHz); running Windows CE.NET 5.0 operating system;
include
several software development tools such as WinConSDK, WinCon Utility,
EzConfig, EzGo and EzMake tools. |
|
|
|
|
