W-8x3x Hardware Specification |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
|
* The product has phased out. |
|
|
Specifications |
|
| |
The

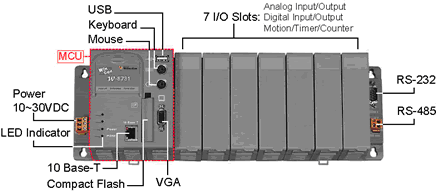

MCU (Main Control Unit) is the powerhouse of the W-8x3x.
Each MCU comprises a Central Processor Module (CPM) and a
wide-range power supply. There is a three or seven slot backplane for either 3 or
7 Parallel or Serial I/O modules. The CPM is
powerful integrated processing engine comprising a CPU, the internal 32 MB flash memory
and 64 MB SDRAM. The CPM offers an additional memory medium in Compact Flash type II format. The CPM includes PC interface, such as
Ethernet port, PS/2 (keyboard and mouse), VGA port, USB port, besides it
also has Add-on FRAM (128 K) on back-plant. |
|
|
| |
|
|
| |
| WinCon-8000 with Display |
W-8331-GM1 |
W-8731-GM1 |
| Processor |
Compatible with
Intel Strong ARM CPU, 206 MHz |
| Operating
System |
Windows CE.NET |
| Pre-load
Software |
MA WinConSDK for
W-8331-GM1/8731-GM1 |
| SDRAM |
64 MB |
| Flash |
32 MB |
| EEPROM |
16 KB |
| FRAM |
128 KB |
| Expansion
Slot |
1 x Compact
Flash type II insert with ejector |
| Interface |
1 x USB1.1,
2 x PS/2 port (Keyboard and Mouse),
1 x VGA port |
| Ethernet
Port |
1 x RJ45, 10 BaseT |
| COM
2 |
9-pin D-Sub
(RS-232) |
| COM
3 |
2-wire Terminal
Block (RS-485) |
| Additional
Serial Port |
N/A |
| Default
Function |
64-bit hardware
unique serial number
Reset button
Power LEDs
Watchdog Timer
Real Time Clock |
| I/O
Expansion Slot |
3 |
7 |
| Operating
Temp. |
-25 ~
+55 °C |
| Storage
Temp. |
-30 ~
+85 °C |
| Humidity |
5 ~ 95 % |
| Power
Supply |
10 ~ 30 VDC, 20 W (Unregulated) |
| Dimensions
(L x H x D) (mm) |
229 x 110 x 90 |
354 x 110 x 90 |
|
|
| |
 |
|
|
